Liebherr LTM 1200

Name: Liebherr LTM 1200
Brand: Liebherr
SKU: 8D80B15A
Availability: InStock

Preis ohne MwSt.

Preis auf Anfrage

Favoriten

Suche speichern

Drucken

INFO

Produktgruppe

All-Terrain-Krane

Marke / Model

Liebherr LTM 1200

Baujahr

2016

Maschinen Standort

Warszawa, mazowieckie

Land

Polen

Mascus ID

8D80B15A

DETAILS

Serien Nr.

093827

Amtliches Kennzeichen

WND53226

Lieferbedingungen

EXW

Zusätzliche Informationen

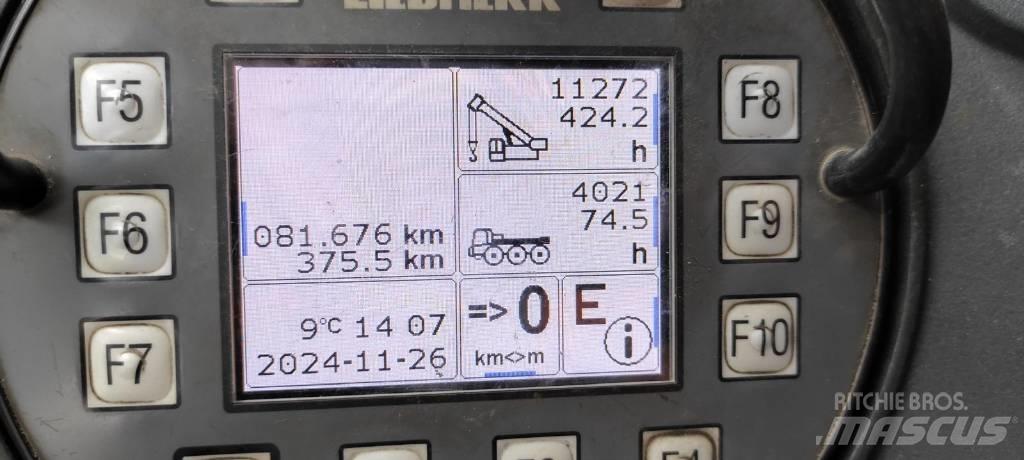

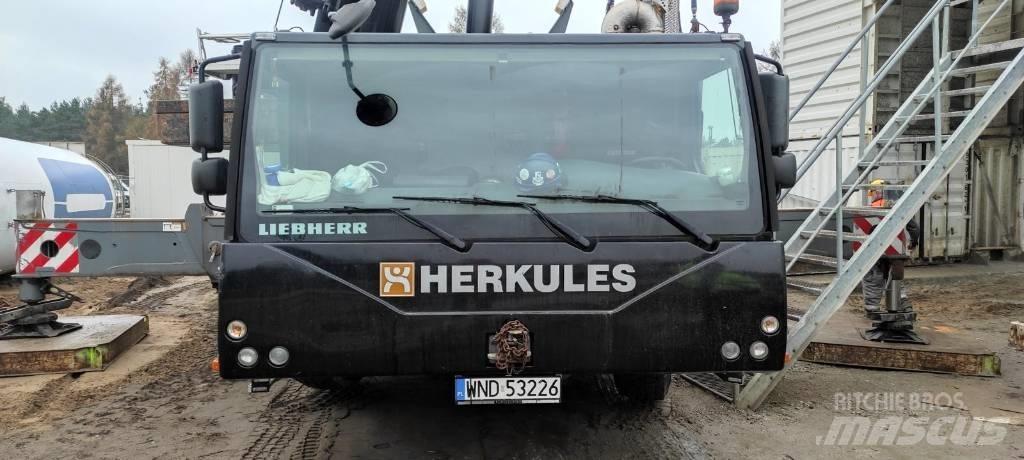

Liebherr LTM 1200-5.1 (Y.O.M. 2016) Warsaw 26.11.2024 TELESCOPIC MOBILE CRANE - LIEBHERR type LTM 1200-5.1 (Capacity max. - 200t; maximum load torque - 657tm.) Year of production: 2016 Serial No.: 093827 Registration plates: WND 53226 Mileage: 81 676 km Worked: (as for 26.11.2024) // chassis: 4 021 mth // superstructure: 11 272 mth Crane chassis: 5-axle Liebherr chassis with hydropneumatic suspension and NIVEUMATIK level control, 370 kW (503 hp) LIEBHERR-Dieselmotor, exhaust emissions according to 97/68 / EG stage IV and EPA / CARB Tier 4-final, automated transmission, dual-range transfer gear, 10 x drive 6, tires 445/95 R 25 (1.600 R 25), 2-circuit ZF steering with active turning of the rear axle, all steering wheels, so-called Crab steering, 2-circuit air-assisted braking system, disc brakes. Maintenance-free axles, cardan shafts and suspension cylinders. Spacious, fully primed driver's cabin with engine independent heater (with timer), air-condition & CD radio. Hydraulic supports with permanently attached supporting plates. Electronic tilt indicator and automatic leveling. Highlighting of the places of support. Reversing acoustic signal. Rear maneuvering coupler. Immobilizer. Crane body: Roller rim, central lubrication system, 180 kW (245 hp) LIEBHERR-Dieselmotor diesel engine, exhaust emissions according to 97/68 / EG stage IV and EPA / CARB Tier 4-final. Hydraulic system with two axial-piston pumps with electronic power control, for the stork and telescope with an open hydraulic circuit, one axial-piston pump each for the winch and rotation in a closed hydraulic circuit, electro-hydraulic crane control, oil cooler. 6-section boom 15.5m - 72m with TELEMATIK quick telescopic system. The operator's cabin is galvanized and powder coated, with independent heating with a time sensor and a CD radio, tilted 20⁰ to the rear. 72 t of ballast, automatic ballasting from the operator's cabin. Safety devices, LICCON overload protection with electronic tilt indicator and standard software, service diagnostics system, LICCON – Lift Planner, anemometer, warning lights for air traffic. Standard crane acceptance tests. Varnishing: 2 colors WORK EQUIPMENT: - Double lattice-type, swing-away jib 12.2m - 22.0m, mounted at an angle of 0⁰ / 22.5⁰ / 45⁰ - 71 t pulley, 3 sheaves, double hook - Block 31.2t, 1 sheave, straight hookMehr anzeigen
