INFO

Produktgruppe
All-Terrain-Krane
Marke / Model

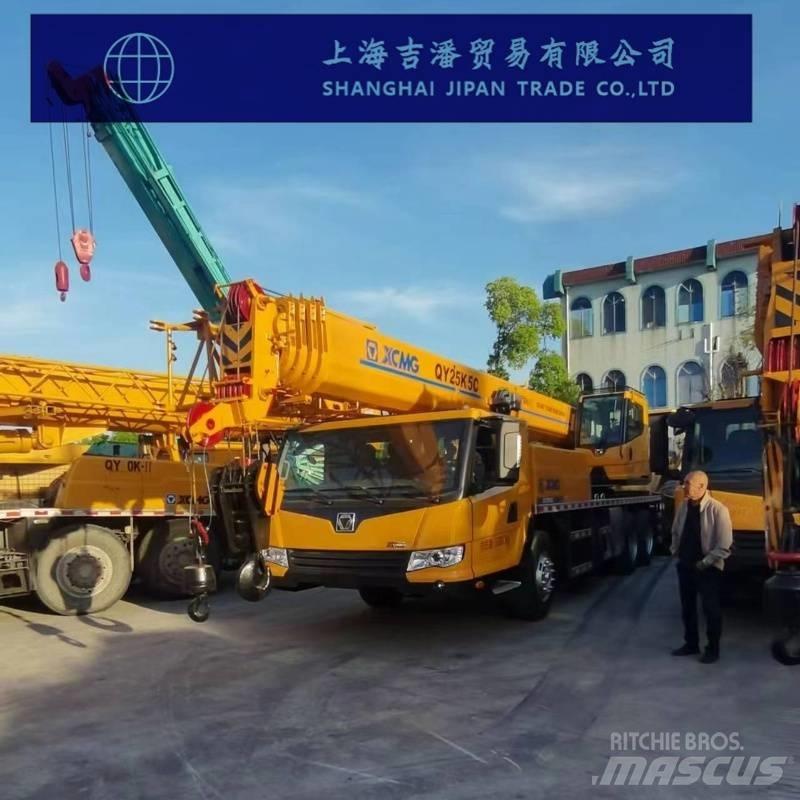

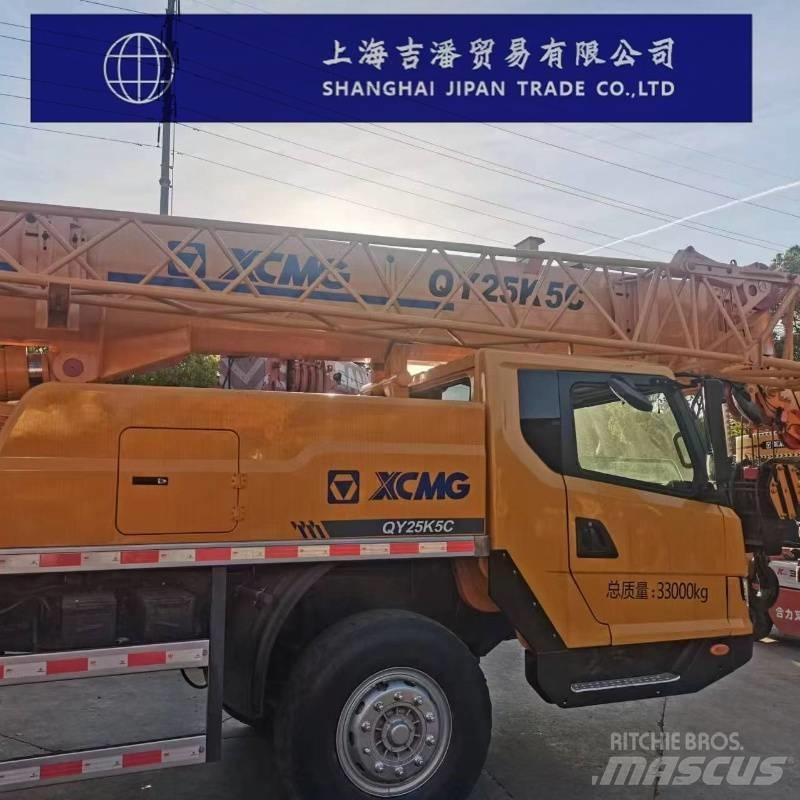

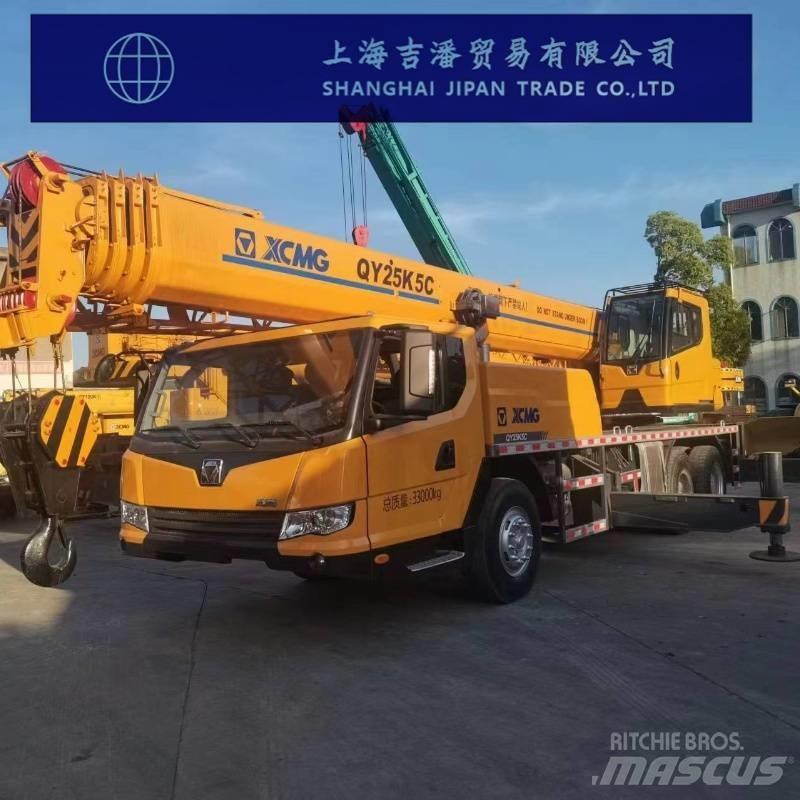

XCMG QY 25 K
Baujahr
2020
Betriebsstunden
3.500 Std.
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
6A717362

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
1
Letzte Inspektion
2025-07-10
Serien Nr.
1
Anzahl der Vorbesitzer
1
Dienstgewicht
33.000 kg
Max. Traglast
25.000 ton
Amtliches Kennzeichen
1
Max. Hebekapazität am Auslegerende
25.000 ton
Min. Auslegerlänge
14 m
Emissionsklasse
Emissionsklasse 5 / Tier V
Auslegerlänge
16 m
Min. Wippausleger
3 m
Länge Wippspitze
15 m
Länge des Kranauslegers
15 m
Hubhöhe
50 m
Hakenhöhe des Krans - horizontaler Ausleger
15 m
Klapp-/Wippspitze
14 m
Motor Kran (Oberwagen)
Benz
Betriebsstd. Oberwagen
857 Std.
Krantyp
Hydraulikausleger
Originalfarbe
Original
Gegengewicht (kg)
14000
Motor Fahrgestell
Original
Motorhersteller
Original
Transportabmessungen (L x B x H)
12850 x 2550 x 3480 mm
Trägertyp
Räderfahrzeug
Informationen zum Zustand/Garantie
Good Condition
Reifenmarke
米其林
Zustand der Bereifung vorne
98
Zustand der Bereifung hinten
2
Produktionsland
China
Lieferbedingungen
FCA, FOB, CIF, EXW
Zertifikate
EPA, CE
Zusatzgeräte
Fly Jib,Hook,Counter Weight,ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Zubehör
Unterflaschen
Zusätzliche Informationen
Basic information Tonnage (tons)33 Lifting capacity Maximum rated lifting capacity (t) : 25 Maximum rated lifting moment (KN.m)1132 Maximum lifting height - base arm (m)10.1 Maximum lifting height - fully extended boom (m)40.7 Maximum lifting height - basic boom + auxiliary boom (m)50.2 Maximum lifting capacity (in tons) : less than 45 tons Boom size Boom length - basic boom (m)10.8 Boom length - fully extended boom (m)42 Boom length - basic boom + auxiliary boom (m)51 Operation speed parameter The maximum lifting speed of the main hoist (m/min) is 135 The maximum lifting speed of the auxiliary hoist (m/min) is 135 The full extension time of the boom (s) is 100 Boom luffing time (s)38 Rotational speed (rpm)2.5 Engine The chassis engine model is SC9DF300.1Q5 Rated power (kw/rpm)221/2200 Driving parameters Maximum driving speed (km/h) : 90 Minimum turning radius (m) : 10.5 Maximum climbing gradient (%)40 Approach Angle/departure Angle (°)11/13.5 Minimum ground clearance (mm) : 250 Overall machine specification The total length of the entire machine is 12,850 mm The overall width of the machine (mm) is 2550 The overall height of the machine (mm) is 3480 Wheelbase (mm) : 4500+1350 Working weight (t)33 Outrigger span Vertical × horizontal (m)5.5*6.4
