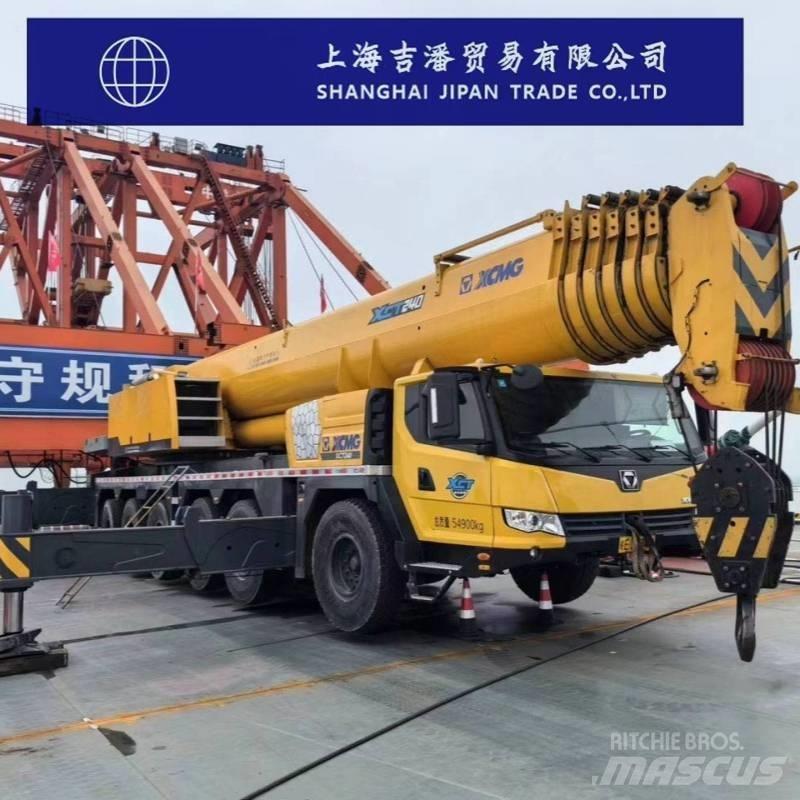

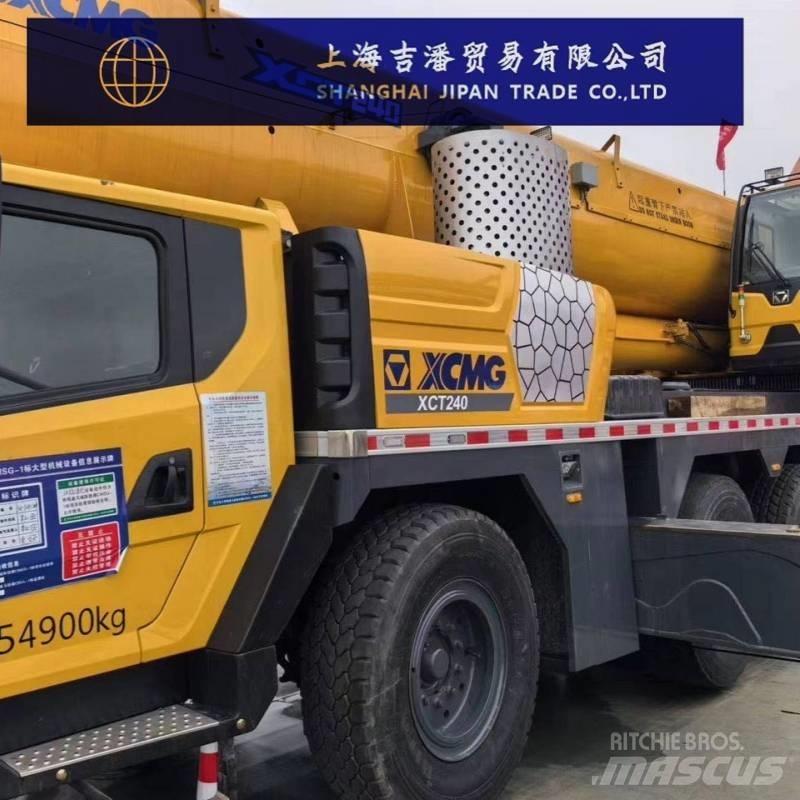

XCMG XCT 240
Preis ohne MwSt.
Drucken
INFO
Produktgruppe
All-Terrain-Krane
Marke / Model
XCMG XCT 240
Baujahr
2022
Betriebsstunden
2.000 Std.
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
23A1D290
PREISANGABE
Währung auswählen
DETAILS
Lagernummer
1
Letzte Inspektion
2025-07-10
Serien Nr.
1
Anzahl der Vorbesitzer
1
Dienstgewicht
220.000 kg
Max. Traglast
240.000 ton
Amtliches Kennzeichen
1
Max. Hebekapazität am Auslegerende
240.000 ton
Min. Auslegerlänge
14 m
Emissionsklasse
Emissionsklasse 5 / Tier V
Auslegerlänge
16 m
Min. Wippausleger
11 m
Länge Wippspitze
15 m
Länge des Kranauslegers
15 m
Hubhöhe
85 m
Hakenhöhe des Krans - horizontaler Ausleger
15 m
Klapp-/Wippspitze
14 m
Motor Kran (Oberwagen)
Benz
Betriebsstd. Oberwagen
857 Std.
Krantyp
Hydraulikausleger
Originalfarbe
Original
Gegengewicht (kg)
14,000
Motor Fahrgestell
Original
Motorhersteller
Original
Transportabmessungen (L x B x H)
Original m
Trägertyp
Räderfahrzeug
Informationen zum Zustand/Garantie
Good Condition
Reifenmarke
米其林
Zustand der Bereifung vorne
98
Zustand der Bereifung hinten
2
Produktionsland
China
Lieferbedingungen
FCA, FOB, CIF, EXW
Zertifikate
EPA, CE
Zusatzgeräte
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Zubehör
Unterflaschen
Zusätzliche Informationen
Maximum rated lifting capacity: 240 tons
Boom: 7-section "U" -shaped cross-section boom, with a length of up to 67 meters

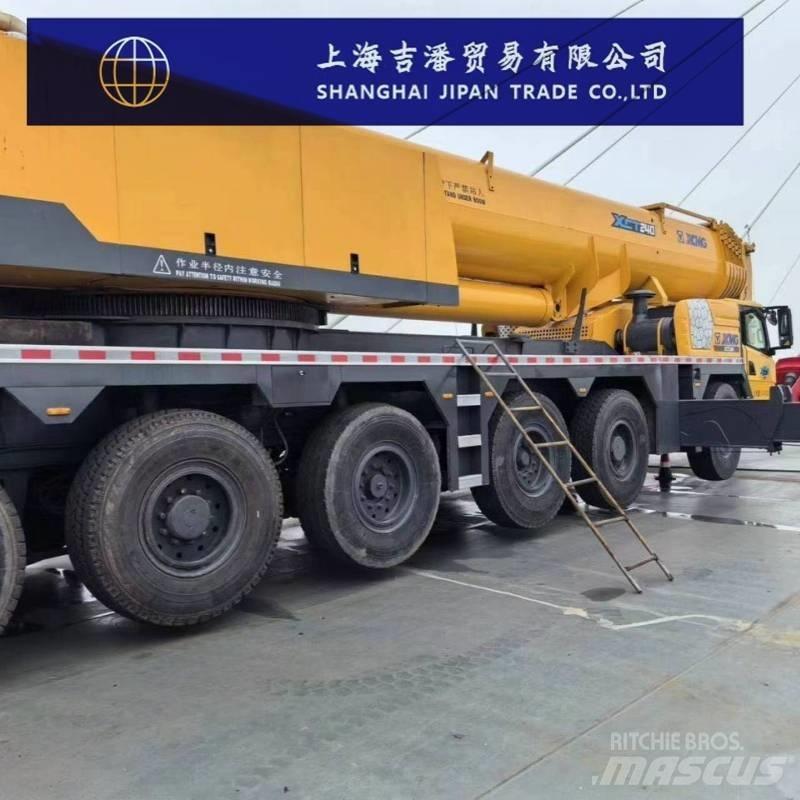

Chassis: 6-axle chassis, drive/steering mode: 12×6×10
Engine: The engine model of the vehicle is OM502LA.Ⅲ/5, which is a V-type, liquid-cooled, eight-cylinder, four-stroke, turbocharged, intercooled, electronically fuel-injected diesel engine. It has a maximum net power of 420kW/1800r/min and a maximum torque of 2700N · m/1080r/min. The engine model for the vehicle is TAD722VE or TAD750VE, with a maximum net power of 194/2100kW or 181/2100kW, and a maximum torque of 1050/1400N · m or 1050/1500N · m
Transmission: German ZF original imported electronically controlled transmission, with 16 forward gears and 2 reverse gears
Fuel tank capacity: approximately 500 liters
Hydraulic oil tank capacity: approximately 1200L
Tires: Specifications are 385/95R25 and 14.00R25, with a total of 12 tires (excluding spare tires)
Main hoisting mechanism: Single rope tension 147KN, wire rope diameter φ24mm, length 320m
Auxiliary lifting mechanism (optional) : Single rope tensile force 130KN, wire rope diameter φ24mm, length 220m
Full extension time of the boom: 650 seconds
Maximum rotational speed: 1.6r/min
Lifting speed: 115m/min for the main lifting mechanism
Outrigger distance (full extension) : 9.625m longitudinally, 8.7m laterally
Basic boom lifting height: 12.6 meters
The longest main boom lifting height: 65.6 meters
The maximum lifting height of the longest main boom + auxiliary boom (12m) is 78.1m
The maximum lifting height of the longest main boom plus auxiliary boom (20m) is 85.7 meters
The tail turning radius of the counterweight: 4800mm
Maximum driving speed: 71km/h
Minimum stable driving speed: 2.1km/h
Minimum turning diameter: 24 meters
Minimum ground clearance: 280mm
Approach Angle: 25°
Departure Angle: 18°
Braking distance (with an initial braking speed of 30km/h) : ≤10 meters
Maximum climbing ability: 48%
External noise during acceleration: 84dB (A)
Driver's ear noise: 90dB (A)
