ACHIEVE AP300-TD
Preis ohne MwSt.
Drucken
INFO
Produktgruppe
Betonpumpen
Marke / Model
ACHIEVE AP300-TD
Baujahr
2024
Zustand
Neu / nicht gebraucht
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
49885CF8
PREISANGABE
Währung auswählen
DETAILS
Serien Nr.
Concrete trailer pump truck parameters
Letzte Inspektion
2024-09-26
Dienstgewicht
2.600 kg
Bewegungsart
Transportabel
Pumpen-Typ
Diesel
Pump-Stärke
50 kW
Transportabmessungen (L x B x H)
46000 x 17800 x 17200 mm
Motorhersteller
Deutz, Köln-deutz
Pumpenart
Kolbenpumpe
Produktionsland
China
Lieferbedingungen
FOB, CIF
Zertifikate
EPA, CE, TÜV
Zusatzgeräte
Theoretical maximumthroughput
5-25 m³/h
5-30 m³/h
45m³/h
Maximum conveying pressure
80bar
70bar
80bar
Specification of conveying cylinder
160 ㎜
150㎜
180mm
Work schedule
800mm
1000㎜
1000mm
Maximum stroke per minute
27
30
30
Engine brand
Deutz, Köln-deutz
Deutz, Köln-deutz
DEUTZ (imported from Germany)/Dalian diesel engine in China
Engine type
TD2.9-L4 (EKZ11501) 2200r/min
TD2.9-L4(EKZ11505) 2200r/min
TCD3.6L04/BF4M2012-09T3R
Power
50KW
55KW (3.7562 Horsepower)
74.4Kw/72Kw
Discharge
US EPA Tier 4
US EPA Tier 4
Euro 5/Country 3
Fuel tank volume
65L
98L
98L
Volume of hydraulic tank
200L
200L
200L
Hopper structure
S valve
S valve
S valve
Hopper height
960㎜
960㎜
1250mm
Hopper capacity
260L
260L
300L
Outlet diameter
125 ㎜
125㎜
125mm
Maximum aggregate size
≤30㎜
≤30㎜
≤40mm
Trailer
Single Shaft、electric controller
Single Shaft、electric controller
Single Shaft、electric controller
Weight
2300Kg
2600㎏
2600㎏
External
Zusätzliche Informationen

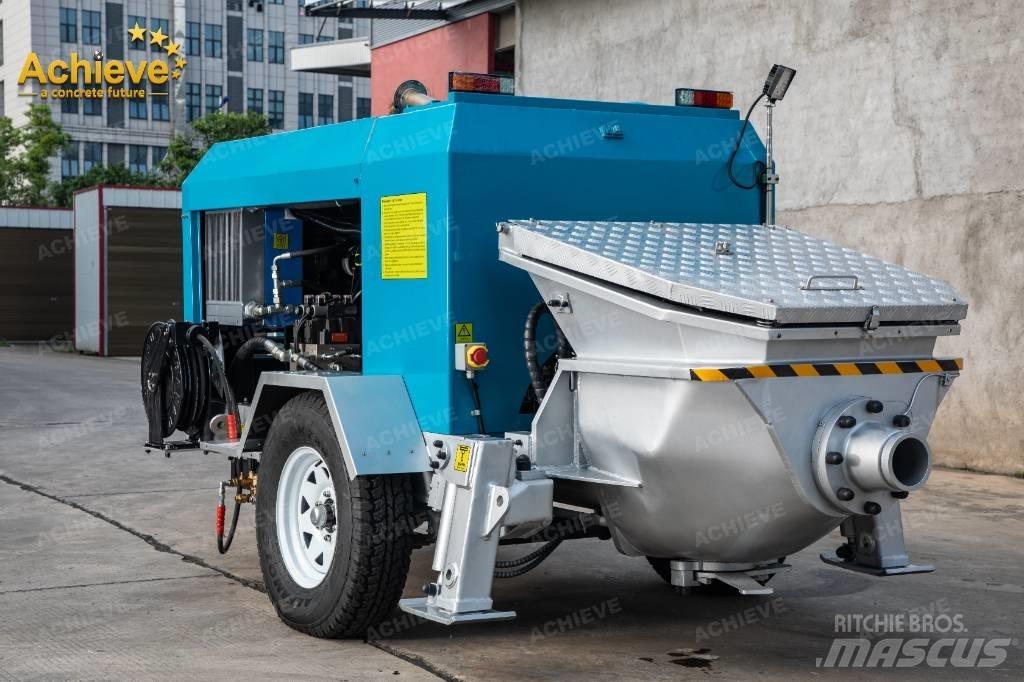

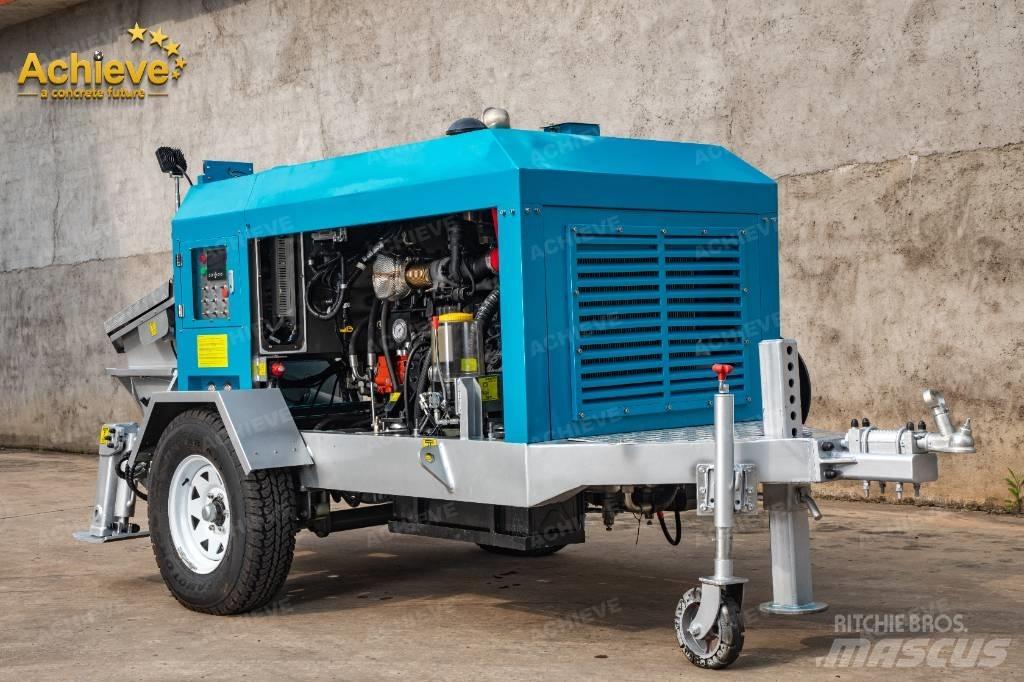

ACHIEVE AP300-TDE European Version Of Concrete Pump New Product Trailer Mounted Concrete Pump
The AP300 piston pump is ideally suited for controlling shotcrete smaller than 30 mm, and the AP300 engineers designed and defined a completely new product based on the criteria used by customers in the European market. This machine has more power and a higher lightweight, and every detail has been thought through. The AP300 is easier to maintain than any previous model, requires less maintenance costs and is our most user-friendly design. In addition, ACHIEVE will be happy to explain to you additional advantages and questions about your individual requirements
1.Use industrial motion controllers to optimize fuel output.
2.The new engine technology of Deutz engines imported from Germany - clean and efficient is suitable for all the requirements of the Stage V "emission standard", obtained the clean emission certificate from the United States, with more power and higher delivery rate.
3.T
Achieve Innovations
5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
