Putzmeister M46-5

Preis ohne MwSt.

Images58Videos1

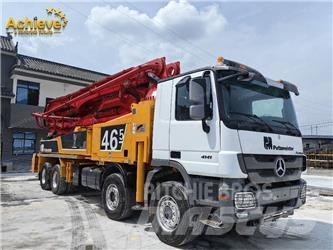

Putzmeister M46-5 Betonpumpen
Putzmeister M46-5 Betonpumpen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Betonpumpen
Marke / Model
Putzmeister M46-5
Baujahr
2013
Betriebsstunden
3.000 Std.
Zustand
Generalüberholt,Aufbereitet
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
FF862F64

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
AICPT016
Anzahl der Teilabschnitte
5
Letzte Inspektion
2024-09-26
Dienstgewicht
32.000 kg
Auslegerlänge
300 cm
Max. horizontale Reichweite
4.110 cm
Maximale vertikale Reichweite
4.610 cm
Bewegungsart
Stationär
Pumpen-Typ
Diesel
Pump-Stärke
300 kW
Transportabmessungen (L x B x H)
11850 x 2500 x 4000 mm
Emissionsklasse
Emissionsklasse 5 / Tier V
Motorhersteller
Ergonic3. EU Version
Pumpenart
Kolbenpumpe
Rahmenhersteller
Mercedes Benz
Reifenmarke
Mercedes Benz
Lieferbedingungen
FOB, CIF
Zertifikate
EPA, CE, TÜV
Zusatzgeräte
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Zusätzliche Informationen
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducMehr anzeigen
