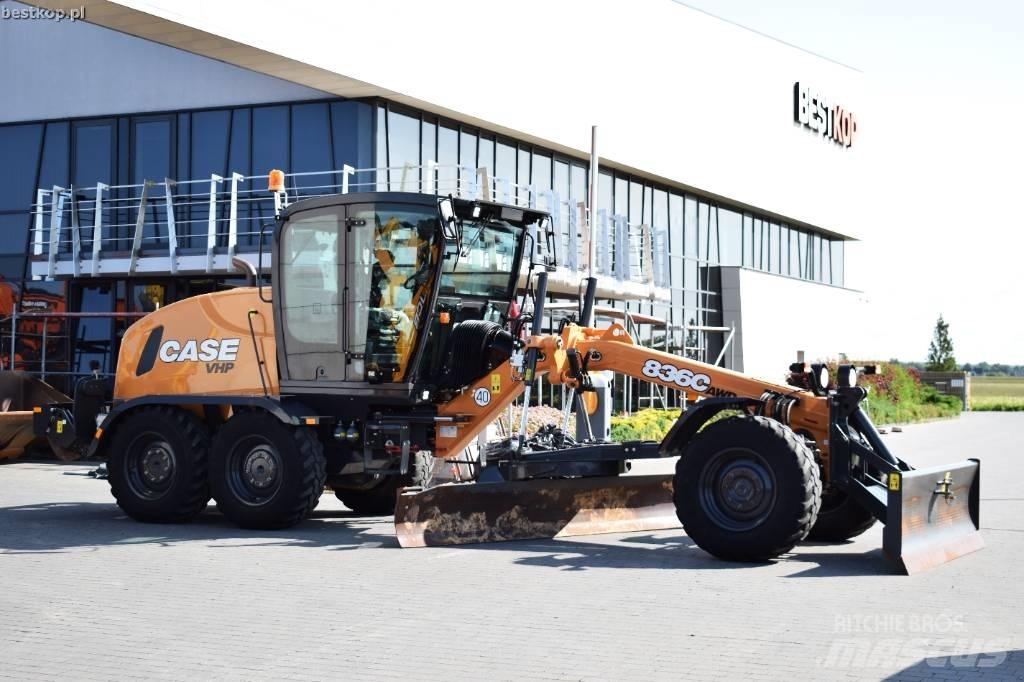

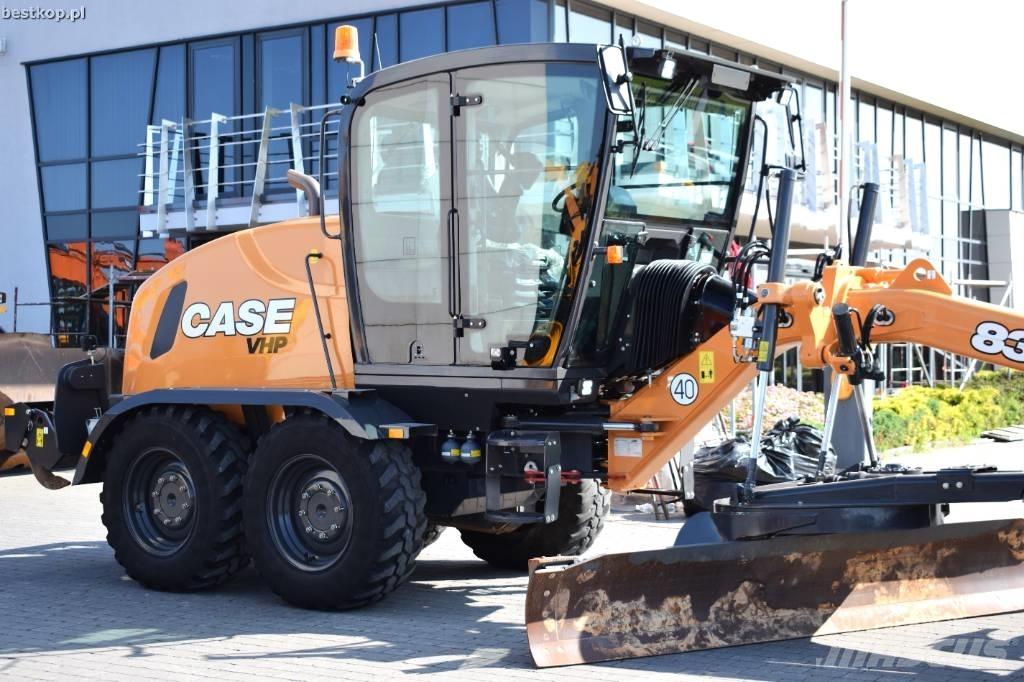

Case 836 C AWD

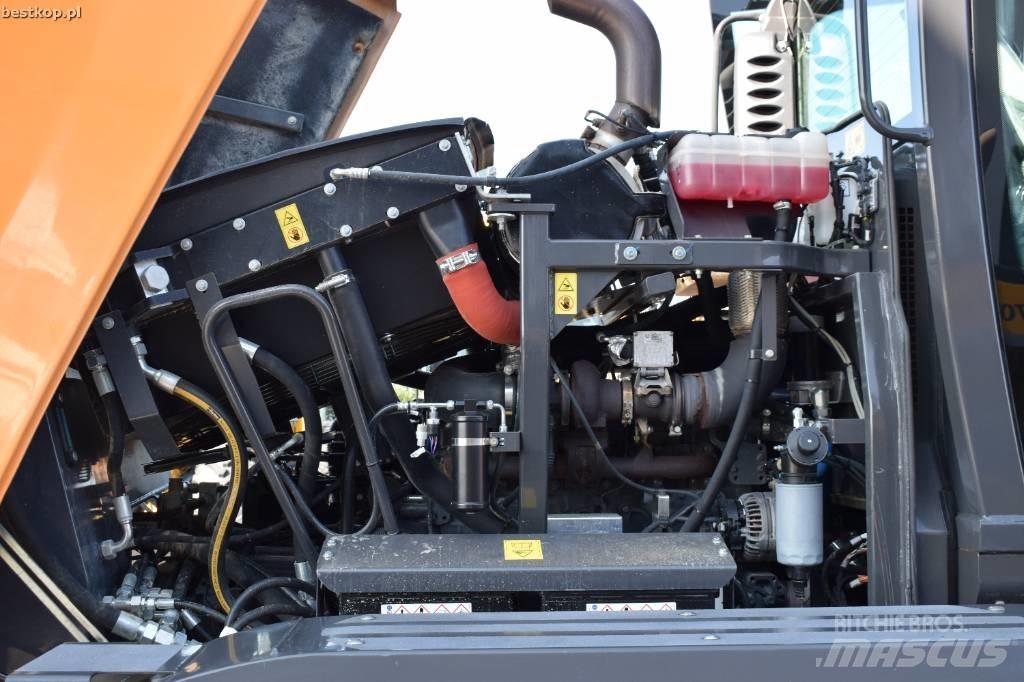

CASE 836C AWD Year of production 2022 Mileage ONLY: 630 mth Weight 12800 kg 6-cylinder engine with 119 kW power WARRANTY: 6 MONTHS OR 1000 HOURS CASE 836C (AWD) Grader Technical Specifications Drivetrain: NEF diesel, 6-cylinder, type FPT F67 NEF STAGE V, common rail, turbocharged intercooler 6.7 l capacity, meeting the latest Stage V "Hi-eSCR2" exhaust emission standard; patented selective catalytic reduction system with Adblue In gears 1-3, power - 102 kW (138 HP) according to ISO 14396/ECE R120; In gears 4-6, power - 115 kW (156 HP) according to ISO 14396/ECE R120; Torque – 725 Nm at 1,400 rpm; Full PowerShift type ensuring the ability to change gears under load; Number of forward gears – 6 (Vmax=39.9 km/h); Number of reverse gears – 3; (Vmax=29.2 km/h); Torque converter with a ratio of 1.87:1; Pulling force 85 kN Hydraulic system: ▪ Variable flow multi-piston pump, max. capacity 94.5 l/min; ▪ The load sensing system operating in a closed circuit at a pressure of 200 bar enables very high precision of operation; ▪ System capacity – 185 l; Chassis – all-wheel drive: Hydrostatic front wheel drive with EDCV (Electronic Drive Control Volume) system, additionally connected to the hydrodynamic rear wheel drive. Bidirectional pump controlling the motors placed in the front wheel hubs. Hydraulic No-Spin differential regulating the torque and protecting against wheel spin. Microprocessor monitors and selects the driving force of the front wheels to the rear wheels. Stepless switch allows the operator to select the pulling force of the front wheels to the current working conditions. Slow travel mode as standard: drive only on the front wheels to maintain very low driving speeds. ▪ Hydraulically controlled steering system; ▪ Turning radius (along the edge of the wheels) – 6.6 m; ▪ Six equal wheels with tires of size – 405/70 R20; ▪ Wet disc braking system acting on all rear wheels; ▪ Front driven axle (6WD): ▪ Hydrostatic front wheel drive controlled by an electronic system responsible for the appropriate selection of rotational speed (EDCV); Axle oscillation - ± 15°; Wheel tilt - ± 21.45°; Wheel turning angle left/right - ± 40°; Frame twist - ± 28°' Ground clearance - 0.485 m; ▪ Tandem rear axle: Axis oscillation - ± 15°; Automatic No Spin differential lock (no slip); 4-wheel drive transmission via chains; Rotation ring: ▪ Can be rotated 360°; ▪ Diameter of the ring - 1.15 m; ▪ Closed slewing ring with internal lubrication of the slewing bearing, preventing the access of contamination; Electrical system and cabin: ▪ Voltage 24 V; ▪ Alternator 90A; ▪ Battery 2 x 100 Ah; ▪ “Cold start” system for easier engine starting at low temperatures; ▪ Spacious, comfortable ROPS/FOPS cabin equipped with air conditioning, work lights, adjustable steering column; comfortable, fully adjustable operator's seat, doors on both sides; Additional equipment included in the price of the machine: JOYSTICK CONTROL!!! ▪ Heated FOPS/ROPS cabin with air conditioning, low cabin (-18 cm) ▪ Comfortable, heated, air-suspended operator's seat ▪ All-wheel drive - front and rear (AWD) 6x6 ▪ Parallel front blade ▪ Center blade 3355 mm wide and 522 mm high ▪ 5-tooth rear ripper ▪ Reverse alarm ▪ Lighting for moving on public roads ▪ LED work lights ▪ Orange warning light Machine price: 220 000 € without tax
