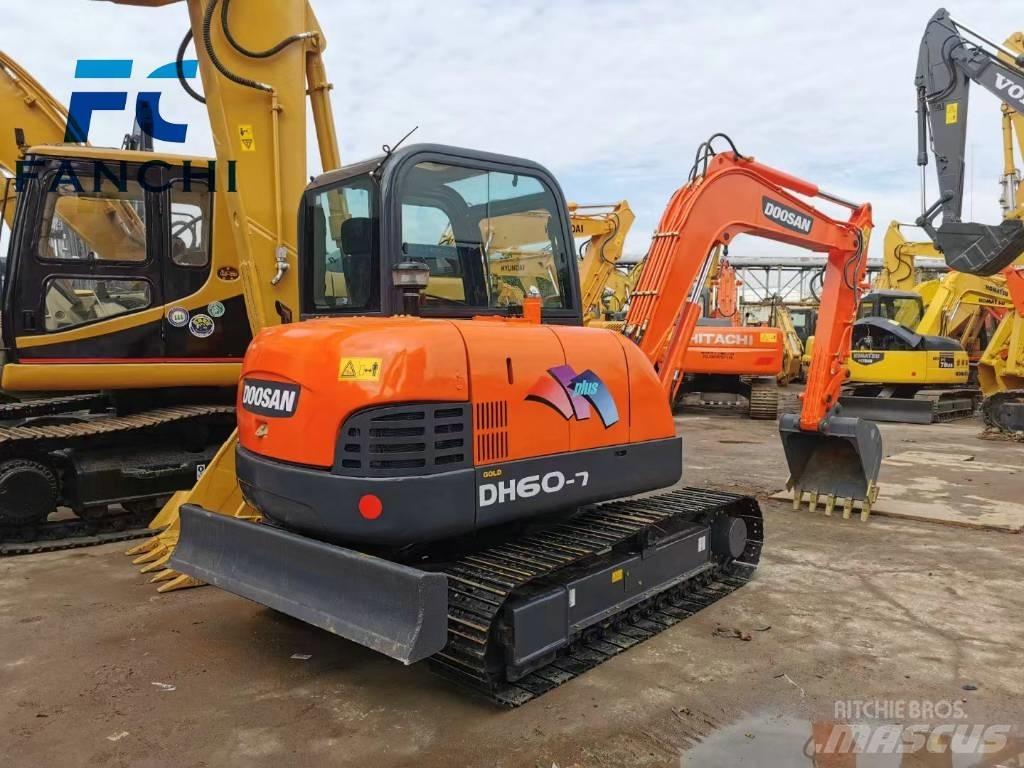

Doosan DH 60

Preis ohne MwSt.

Images9
Doosan DH 60 Minibagger < 7t
Doosan DH 60 Minibagger < 7t
Doosan DH 60 Minibagger < 7t
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Minibagger < 7t
Marke / Model
Doosan DH 60
Baujahr
2023
Betriebsstunden
600 Std.
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
86AB9175

PREISANGABE

Währung auswählen

DETAILS

Anzahl der Vorbesitzer
1
Zustand Laufwerk
good
Dienstgewicht
6.000 kg
Spurbreite
400 mm
Schaufelvolumen
2 m3
Transportabmessungen (L x B x H)
585018802.575 m
Originalfarbe
YELLOW
Hochlöffel-/Schaufelstiellänge
1.990 mm

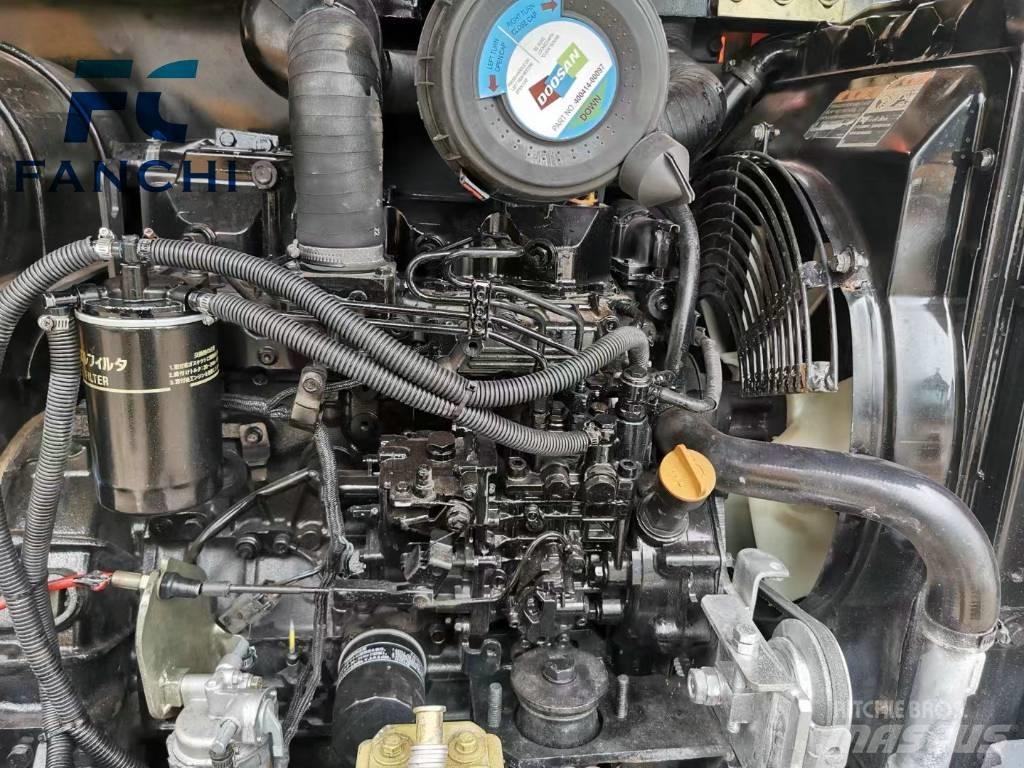

Motor
洋马 4TNV94L
Motorleistung
38,1 kW (51,8 PS)
Motorhersteller
JAPAN
Informationen zum Zustand/Garantie
good
Produktionsland
Japan
Lieferbedingungen
FOB, CIF, EXW
Zertifikate
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME (American Society of Mechanical Engineers)
Zusatzgeräte
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Zubehör
Autom./hydraulische Schnellkupplung
Hammer/Scherenhydraulik
Kabelkasten
GPS
Mehr anzeigen
Zusätzliche Informationen
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minMehr anzeigen

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
