Transportabmessungen (L x B x H)
4.85 x 1.75 x 2.48 mm
Hochlöffel-/Schaufelstiellänge
1.300 mm
Motorleistung
18,2 kW (24,7 PS)
Zusätzliche Informationen

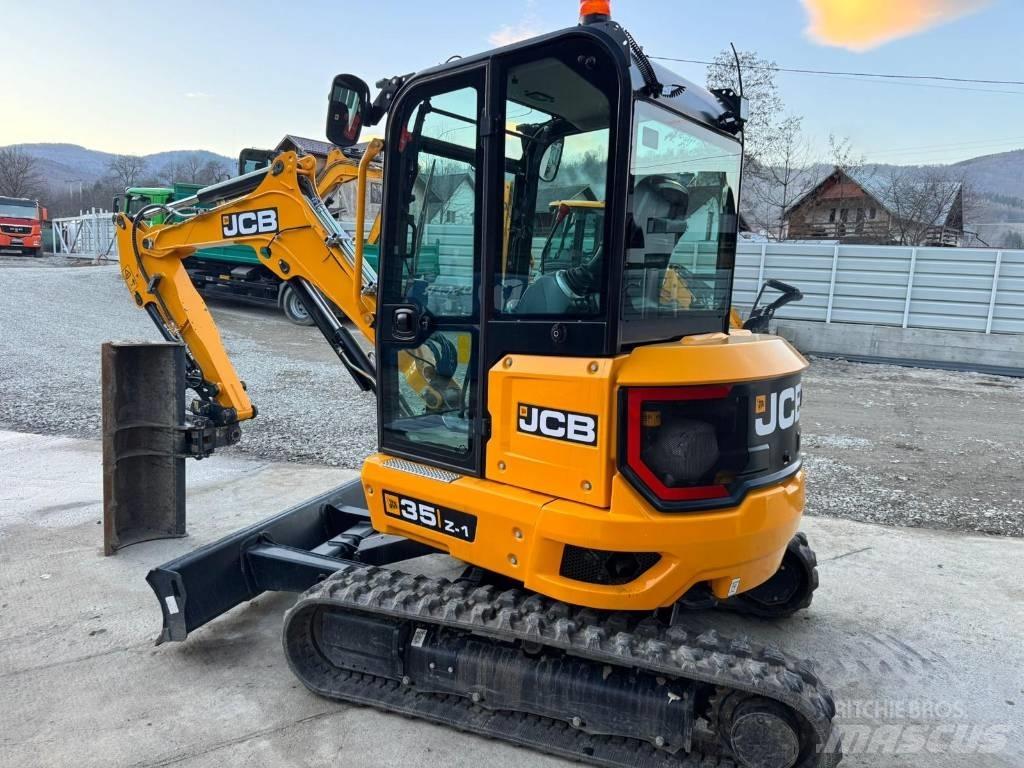

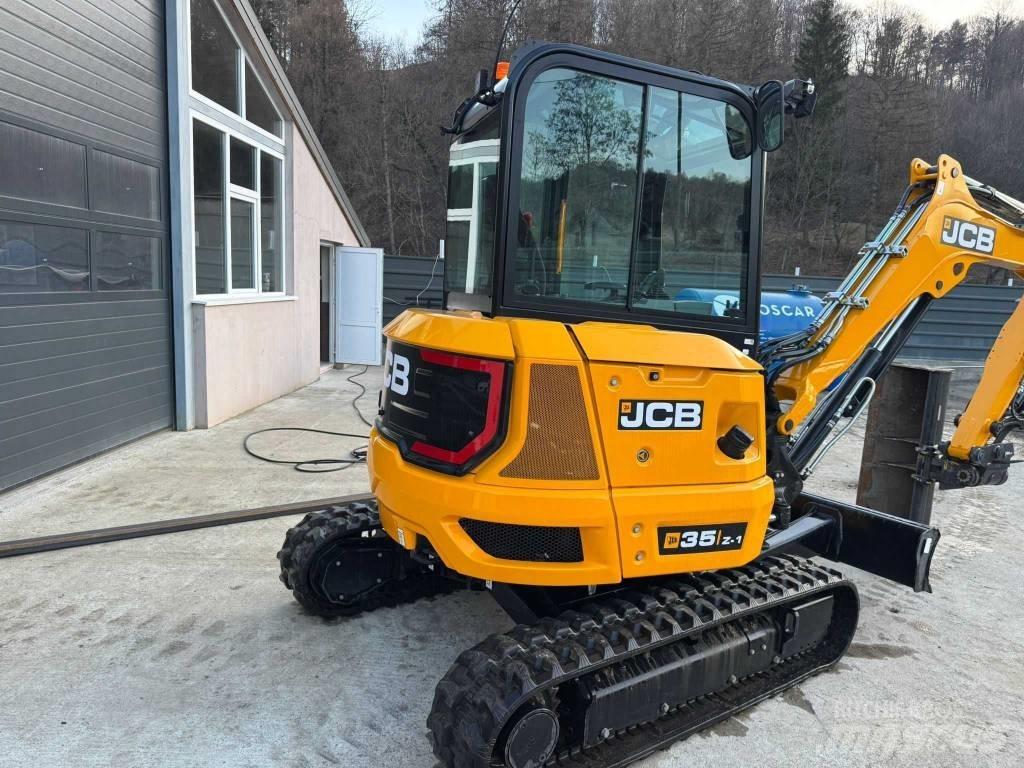

MINI EXCAVATOR JCB 35Z-1 + accessories, perfect working condition, like new, under warranty until October 2025 only 100 hours. INVOICE ISSUED.
The TILT-ROTATE system in the pictures can also be sold separately. The equipment is as follows:
Main Performance
Engine power 25 HP
Width over tracks 1750 mm
Operating weight 3556 Kg
Maximum digging depth 3194 mm
Breakout force at the arm level 22,500 N
Breakout force at the bucket level 32,400 N
Maximum unloading height 3378 mm

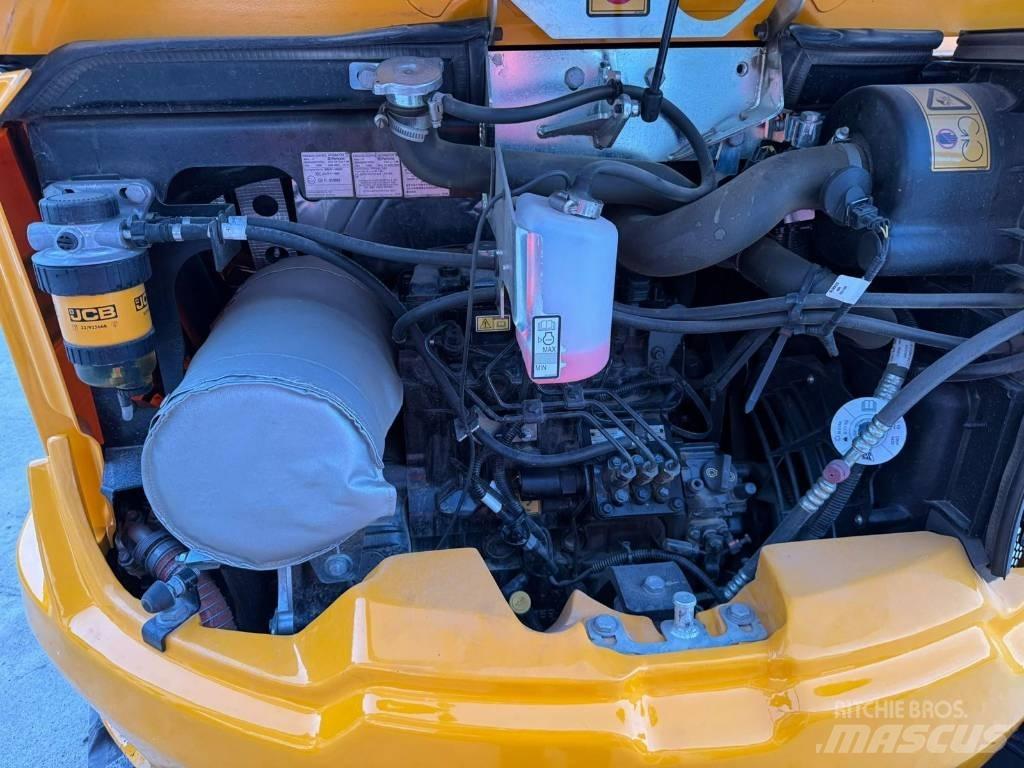

Engine: Perkins 403J-17 Stage V without additional exhaust gas treatment with DPF or Addblue
Engine power 25 HP
Engine torque 91.9 Nm at 1600 rpm
Number of cylinders 3
Cylinder capacity (ccm) 1662 cc
Transmission Hydrostatic servo-controlled, independent left-right.
Travel speed gear 1 (forward/reverse): 2.8 km/h
Travel speed gear 2 (forward/reverse): 4.5 km/h
Braking system
Hydrostatic braking system
Steering system
Skid steering
Hydraulic system
Hydraulic pump with axial pistons and variable flow 76 l/min
Maximum auxiliary installation flow 70 l/min
Hydraulic filter 10 microns
ROPS/TOPS cabin (protected against overturning and falling objects) soundproofed, with heating, ventilation and AC
Standard equipment:
1. Fixed gauge
2. Rubber tracks 300 mm
3. Excavation arm 2450 mm with 1300 mm handle
4. ISO type control system
5. Excavation bucket 300 mm
6. Double-way hydraulic installation;--(for pickaxe, drill, etc.)
7. Seat with seat belt
8. Cutting blade bulldozer 1750mm
9. LED work lights mounted on the arm and cabin
10. Rotating beacon
11. Maintenance and operation manual
Optional equipment:
Excavation arm
Quick change attachment device, with mechanical drive
Quick coupler bolt kit
General purpose excavation bucket, width 600mm
Sloping bucket, width 1200mm
Original JCB Tilt-Rotate systemMehr anzeigen
