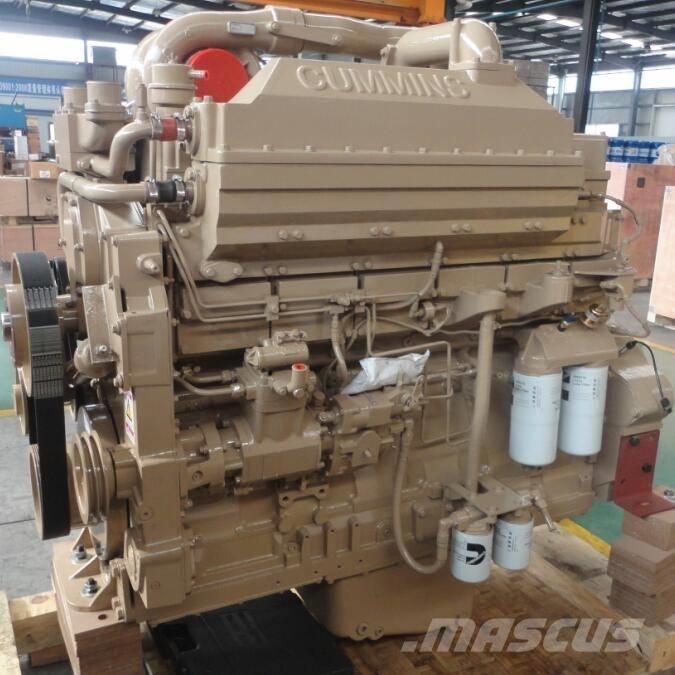

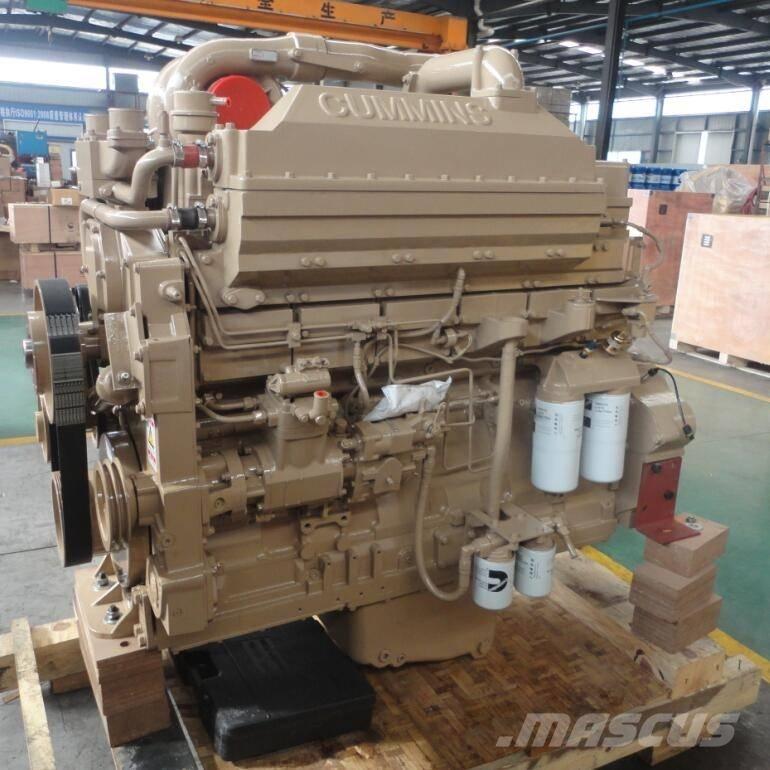

Cummins KTTA19-C700

Cummins KTTA19-C700 engine for drill machine, mining machine and oil field Engine model KTTA19-C700 Engine type 6 cylinders in line Displacement 19 L Rated Power (KW@RPM) 522 kW/700 HP @ 2100 rpm Peak Torque(Nm@RPM) 2730 N.m @ 1400 rpm Emission Standard Euro 2 Cummins diesel engine KTTA19-C700 Technique Specification Bore*stroke 159mm*159mm Intake method Turbochager&Intercooled Fuel systeme Direct Injection Pump Cooling method Fluid Cooling Governor Type Mechanical Control Compression Ratio 13.9 : 1 Fuel Consumption: 210 g/Kw.h Starting System Electrical Starting Motor 12V/24V Lowest Starting Temp .(without auxiliary system) -12℃ Cummins diesel engine KTTA19-C700 Trade Information Warranty time 1year or 1500h Engine Size(L*W*H): 2151mm*966mm*1704mm Packing size 2451mm*1300mm*2000mm Weight net 2073Kg Weight gross 2123 Kg Model Power kW/r/min Torque N.m/r/min KTA19-C525 392/2100 2170/1300 KTA19-C525 373/2100 1870/1500 KT19-C450 335/2100 1830/1500 KTA19-C525 392/2100 2237/1300 KTA19-C525S10 373/2100 1870/1500 KTA19-C525S10 392/2100 2237/1300 KTA19-C525S10 392/2100 2237/1300 KTA19-C600S10 448/2100 2237/1300 KTTA19-C700 522/2100 2730/1400 KTTA19-C700 522/2100 2730/1400 Any more question and request, please contact frankie@stxdl.com, whatsapp 0086 15265755218
