POLYSIUS 20/10-5
Preis ohne MwSt.
Drucken
INFO
Produktgruppe
Pulverisierer
Marke / Model
POLYSIUS 20/10-5
Baujahr
2006
Zustand
Gebraucht
Maschinen Standort
Leduc, Alberta
Land
Kanada
Mascus ID
70C13631
PREISANGABE
Währung auswählen
DETAILS
Lagernummer
86954
Zusätzliche Informationen
High Pressure Grinder Roll Crusher 20/10-5 HPGR
Title: High Pressure Grinder Roll Crusher 20/10-5 HPGR
SKU: 86954
Model: 20/10-5
Year: 2006
Condition: Used

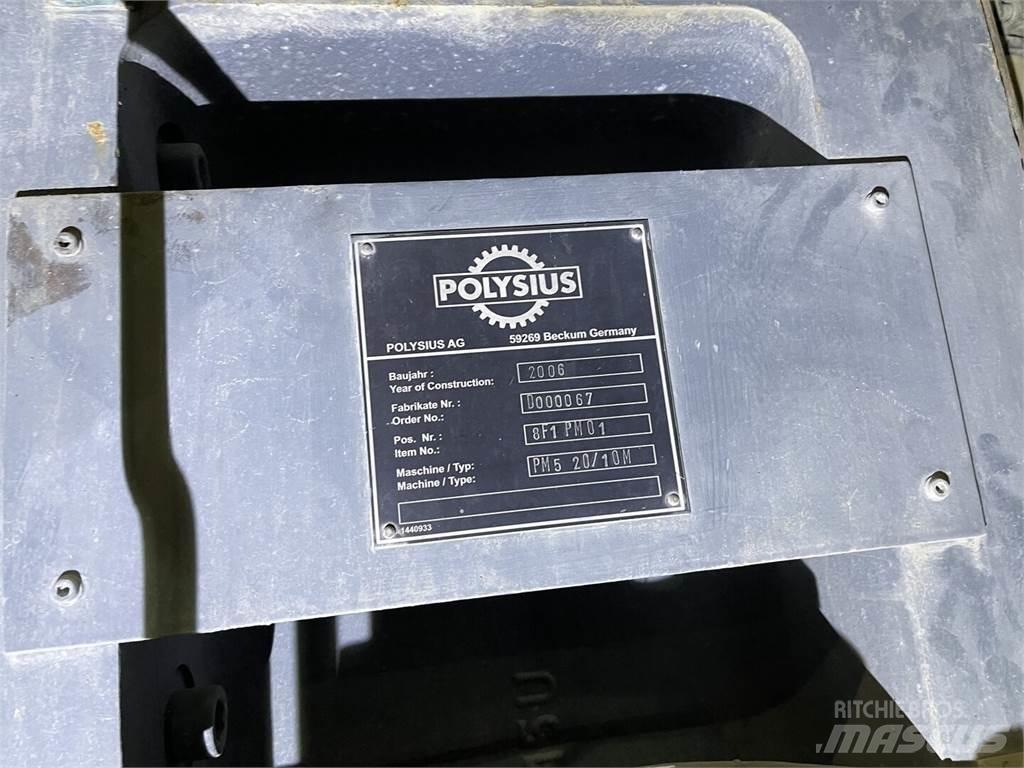

S/N: PM5-20/10M
Made In: UNITED STATES
Product Description
Polysius high-pressure grinding rolls have been used successfully in the grinding of raw materials and binding agents. Polycom HPGR grinding is based on the principle of supplying the material to be ground to two counter-rotating rolls via a feed system. These rolls draw the feed material into the gap between them, where it is ground under high pressure. A hydro-pneumatic system generates the required grinding pressure of up to 250 MPa.
The grinding process produces compacted cakes containing a high proportion of fines, as well as coarser particles with cracks in them. These compacted cakes are broken up, separated and, if necessary, subjected to further grinding.
The Polycom consists of the following main components and has the capacity of 450 metric tones per hour:
- Machine frame with feed system
- Drive unit powered by 2-500hp variable speed motors
- spare parts
- special tooling
Full specifications of all parts and assembly drawings available. Contact for more details.
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia Kanada
