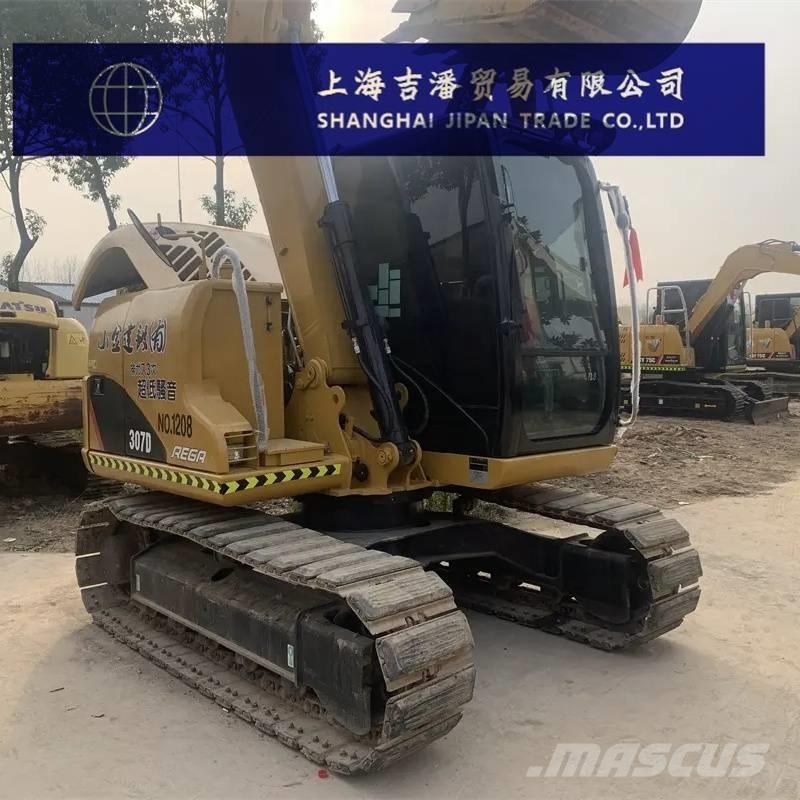

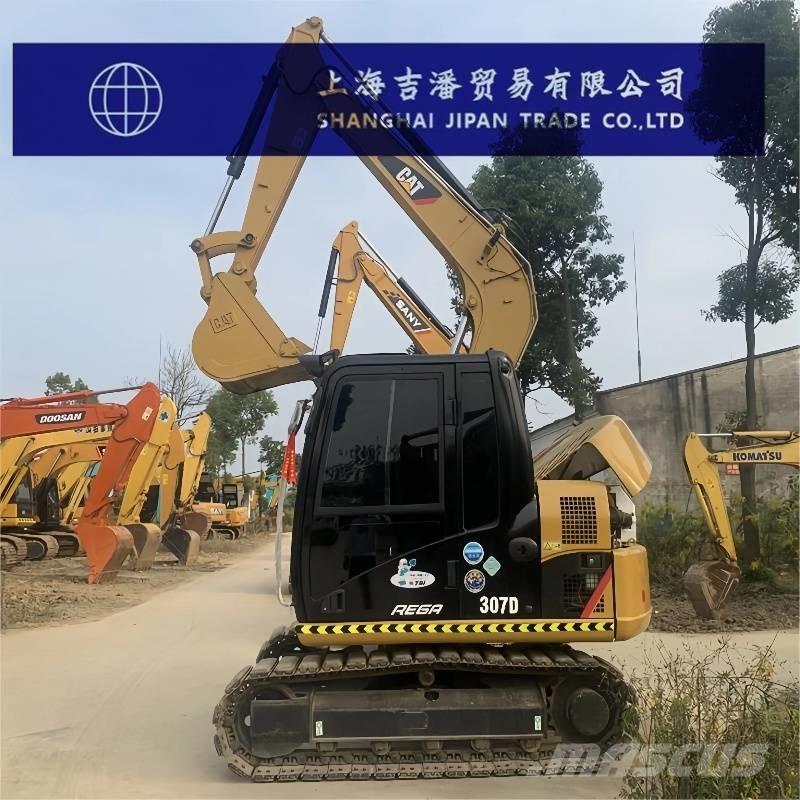

CAT 307 D
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
CAT 307 D
Year of manufacture
2024
Hours of use
850 h
Country
China
General grade
1
2
3
4
5
Mascus ID
3B0BBEEF
PRICING
Choose currency
DETAILS
Internal stock no.
1
Power type
Diesel
Manufacturing / Serial number
1
Amount of previous owners
1
Latest inspection
2025-08-18

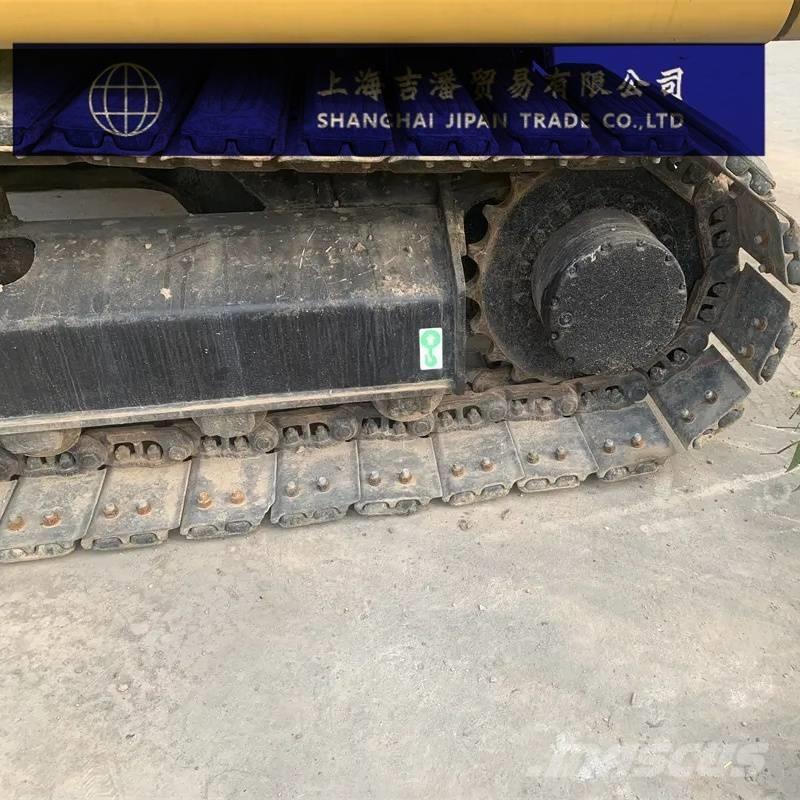

Undercarriage condition
good condition
Engine
Original
Gross Weight
7,193 kg
Engine output
41.5 kW (56.4 hp)
Engine manufacturer
Caterpillar
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
0.31 m3
Track width
450 mm
Top speed
3.10 km/h
Transport dimensions (LxWxH)
60702300 x 2630 mm
Original colour
Yellow
Dipper / stick length
1,670 mm
Condition info/guarantee
1 year
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Additional hydraulics
Rubber tracks
Engine pre-filter
Skeleton bucket
Rotating beacon
Extra equipment
Joystick control
Standard digging bucket
Other information
卡特彼勒307D液压挖掘机 参数配置
规格
动力传统动力
厂商合资/进口
铲斗反铲
吨位(吨)7
整机工作重量(kg)7193
铲斗容量(m³)0.31
斗杆长度(mm)1670
原产地吴江
性能
回转速度(rpm)10
行走速度(km/h)3.1/5.0
爬坡能力(%)70/35°
铲斗挖掘力(kN)50.6
斗杆挖掘力(kN)37.1
最大牵引力(kN)56.7
动力系统
发动机型号三菱Mitsubishi 4M40TL
额定功率(kw/rpm)41.5/2200
排量(L)2.83
气缸数(个)4
缸径×行程(mm)95×100
冷却方式水冷
工作形式符合美国 EPA Interim Tier 4 排放要求
液压系统
主泵最大流量(l/min)128
工作液压油路(Mpa)28
行走液压回路(Mpa)32
回转液压回路(Mpa )24
液压破碎管路是否标配否
油类容量
燃油箱(L)135
液压油箱(L)80
液压系统(L)94(包括油箱)
发动机油更换量(L)12.5
冷却液(L )15.7
主体尺寸
运输总长度(mm)6070
运输总宽度(mm)2300
运输总高度(mm)2630
驾驶室全高(mm)2630
履带总长度(mm)2760
履带板宽度(mm)450
履带总宽度(mm)2290
配重离地间隙(mm)760
前段工作装置最小回转半径(mm)1670
后端回转半径(mm )1750
作业范围
最大挖掘半径(mm)6300
停机面最大挖掘半径(mm)6200
最大挖掘深度(mm)4070
最大挖掘高度(mm)7240
最大卸载高度(mm)5190
最大垂直挖掘深度(mm)3640
推土板宽度×高度(mm)高度450
推土铲举升或推深(mm)380/360
