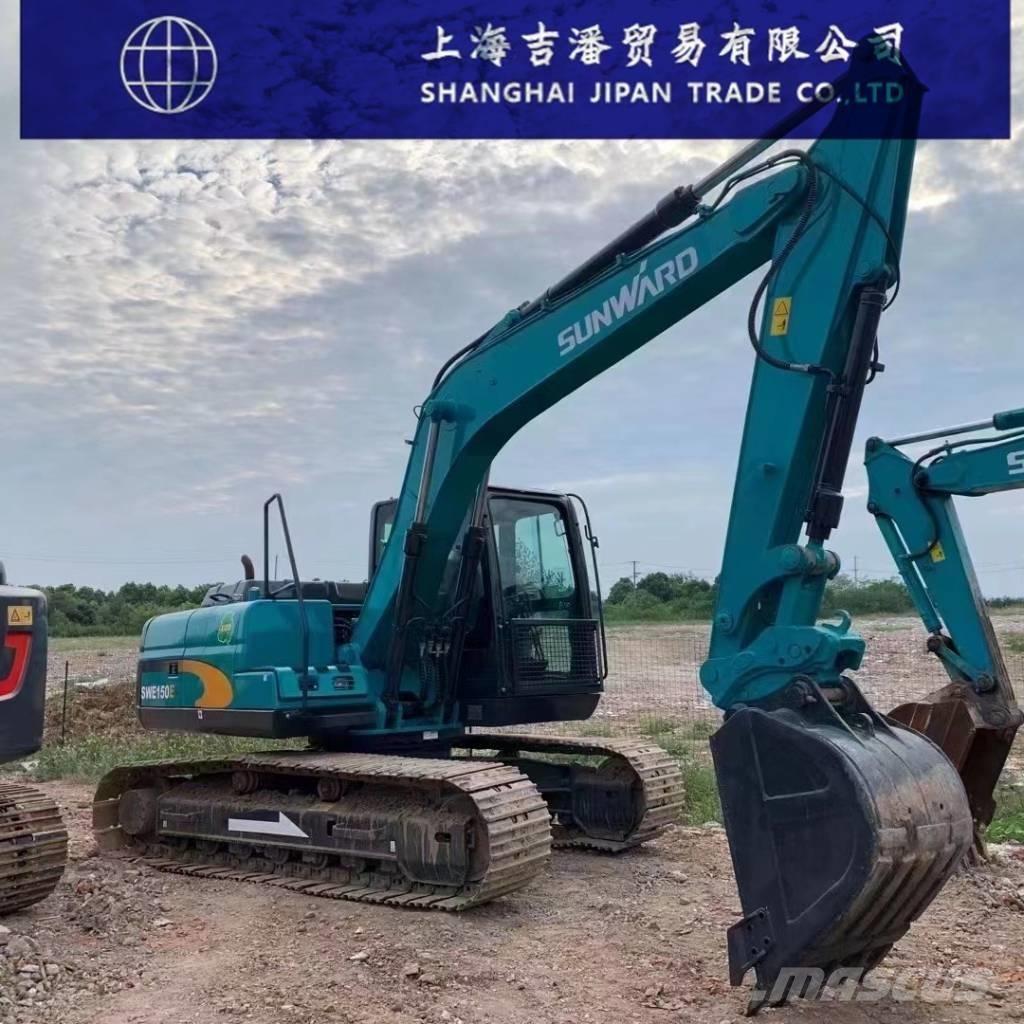

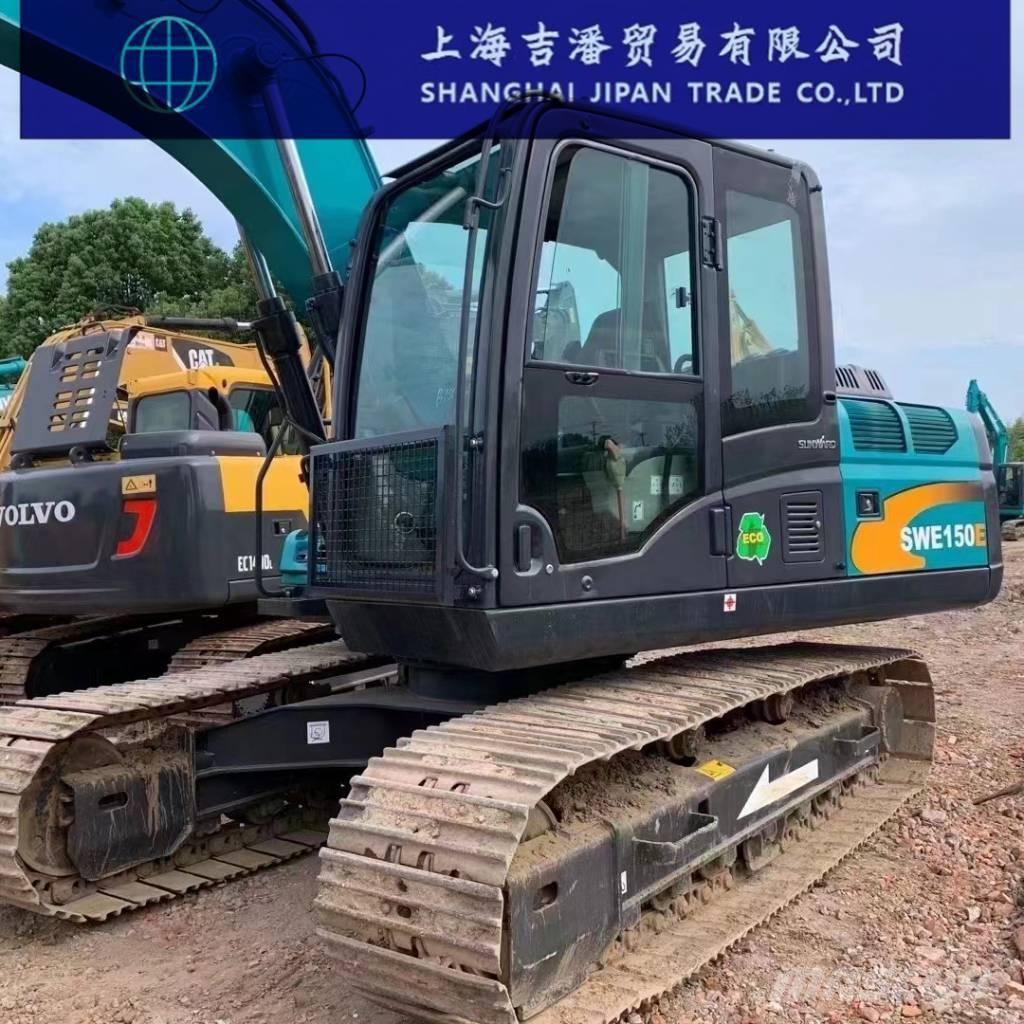

Sunward SWE 150 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of the SWE150E excavator from Sunward Intelligent Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)15 The working weight of the entire machine (kg) is 14,800 Bucket capacity (m³)0.6 Performance Rotational speed (rpm)11.1 Walking speed (km/h) : 5.4/3.3 Climbing ability (%) : 35° The ground pressure (Kpa) is 36.8 Bucket digging force (kN)100 The digging force of the bucket arm (kN) is 72.5 Maximum traction force (kN)96 Power system Engine model: ISUZU AA-4BG1TCG-04 Rated power (kw/rpm) : 84/2200 Displacement (L)4.329 The cooling method is water cooling Working form: 4-cylinder, 4-stroke, water-cooled Hydraulic system The main pump types are two variable piston pumps The maximum flow rate of the main pump (l/min) is 2×139 The main overflow set pressure (Mpa) is 31.4 / pressurized is 34.3 Oil capacity Fuel tank (L)245 Hydraulic oil tank (L)150 Main body size The total transportation length (mm) is 7815 The total transportation width (mm) is 2600 The total transportation height (mm) is 2825 The total height of the cab (mm) is 2825 The width of the vehicle (mm) is 2520 Track grounding length (mm) : 3000 The total length of the track (mm) is 3735 Track plate width (mm) : 600 Track gauge (mm)2000 Minimum ground clearance (mm)410 The ground clearance of the counterweight (mm) is 915 The minimum turning radius (mm) of the front working device is 2510 The rear end turning radius (mm) is 2350 Scope of work Maximum excavation radius (mm) : 8355 The maximum excavation radius of the shutdown face (mm) is 8230 Maximum excavation depth (mm) : 5640 Maximum excavation height (mm) : 8630 Maximum unloading height (mm) : 6130 Maximum vertical excavation depth (mm) : 4540
