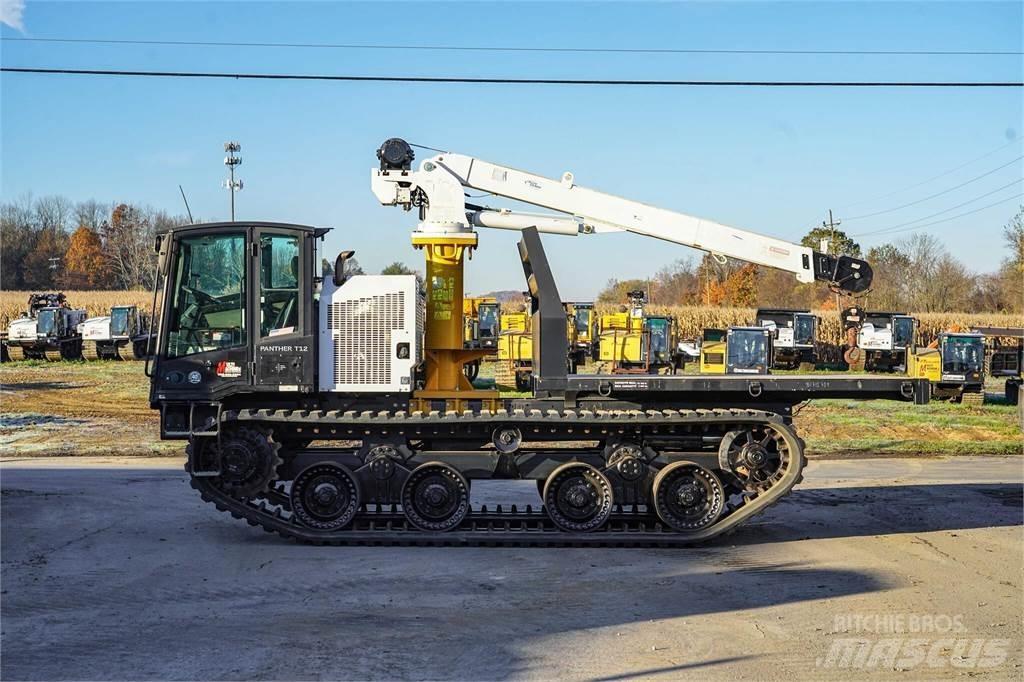

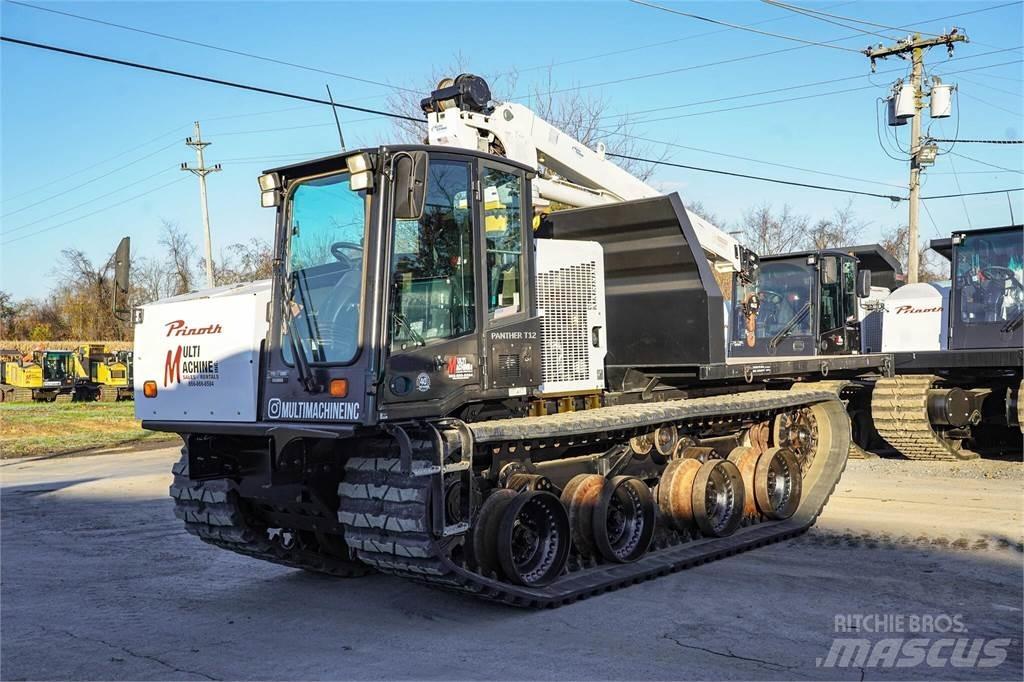

Description: The Prinoth Panther T12 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier currently is outfitted with a dumping flatbed and crane, enabling you to transport over 9 tons of material through some of the roughest terrain. For more information about purchasing or renting this track truck, do not hesitate to Contact Us. Machine Specifications Weight: 30,500 lbs. Capacity: 25,000 lbs. Ground Pressure (Empty): 2.94 psi Ground Pressure (Loaded): 5.91 psi Engine: Caterpillar C7.1 ACERT Horsepower ... 2,200 RPM: 250 HP Torque ... 1,400 RPM: 895.4 lb-ft Max Speed: 6.2 mph Fuel Tank Capacity: 65 gallons Length: 22’7” Width: 8’5” Height: 9’11” Track Height: 29.5 Ground Clearance: 21” Uphill/Downhill Gradeability: 60% Side Hill Gradeability: 40% Flat Bed Specifications Deck Length: 125” Deck Width: 100” Headboard Height: 53.5” Deck Thickness: 4.25” Deck to Ground: 58” Crane Specifications Capacity: 12,000 lbs (5,443 kg) at 6 ft (1.83 m) Rating: 85,000 ft-lb (11.75 t-m) Length: 30 ft (9.14 m) fully extended Weight: 3,140 lb (1,379 kg) Chassis: Class 7 (29,000 GVWR) Body: Titan 85 Stowed Boom Length: 15′ 9″ (4.80 m) Extended Boom Length: 30′ (9.14 m)
ROPSType: EnclosedMehr anzeigen
