Vahva FORTI 200

Preis ohne MwSt.

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Rotationsschaufel
Vahva FORTI 200 Rotationsschaufel
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Rotationsschaufel
Marke / Model
Vahva FORTI 200
Baujahr
2015
Zusatzoptionen
Ex Demo
Maschinen Standort
Saue
Land
Estland
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
24BE0111

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
VR50000
Inspektionsvertrag
Ja
Passend für folgende Maschinen
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

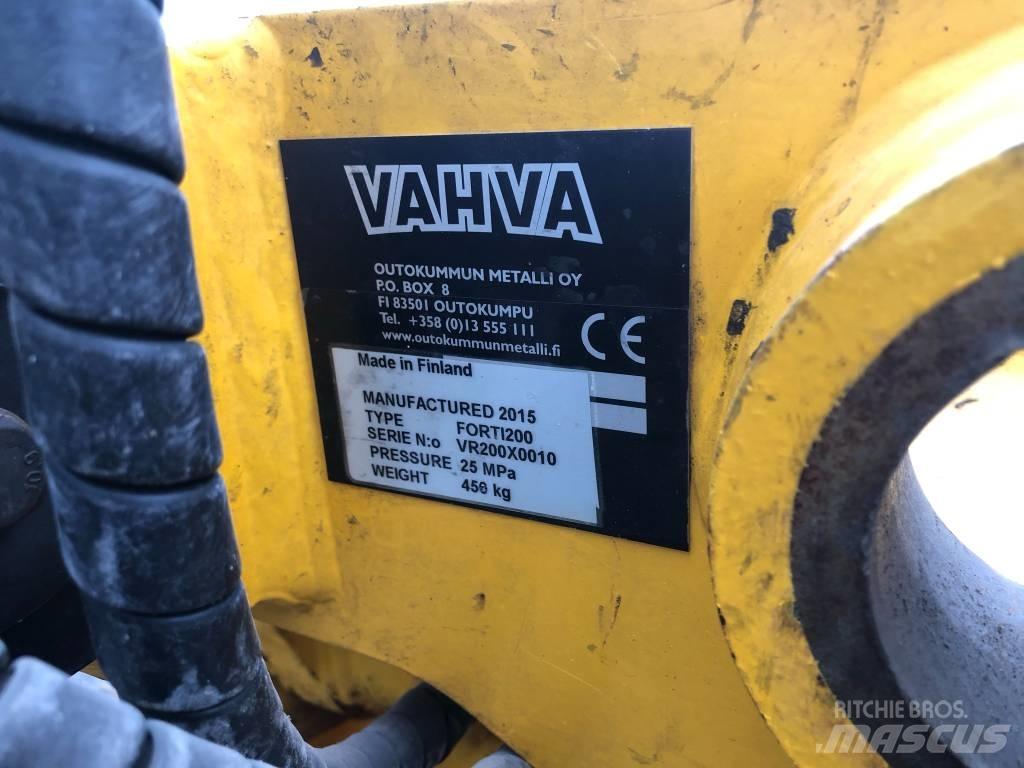

Serien Nr.
VR200X0010
Arbeitsdruck
250 bar
Erforderlicher hydraulischer Fluss
80 l/min
Transportgewicht
450 kg
Transportabmessungen (L x B x H)
990 x 720 x 280 mm
Produktionsland
Finnland
Lieferbedingungen
EXW
Zertifikate
CE
Zusätzliche Informationen

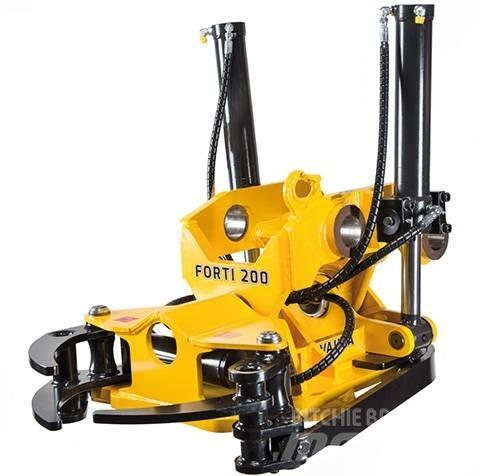

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Mehr anzeigen

Sautec AS

Tule 10 76505 Saue Harjumaa Estland
