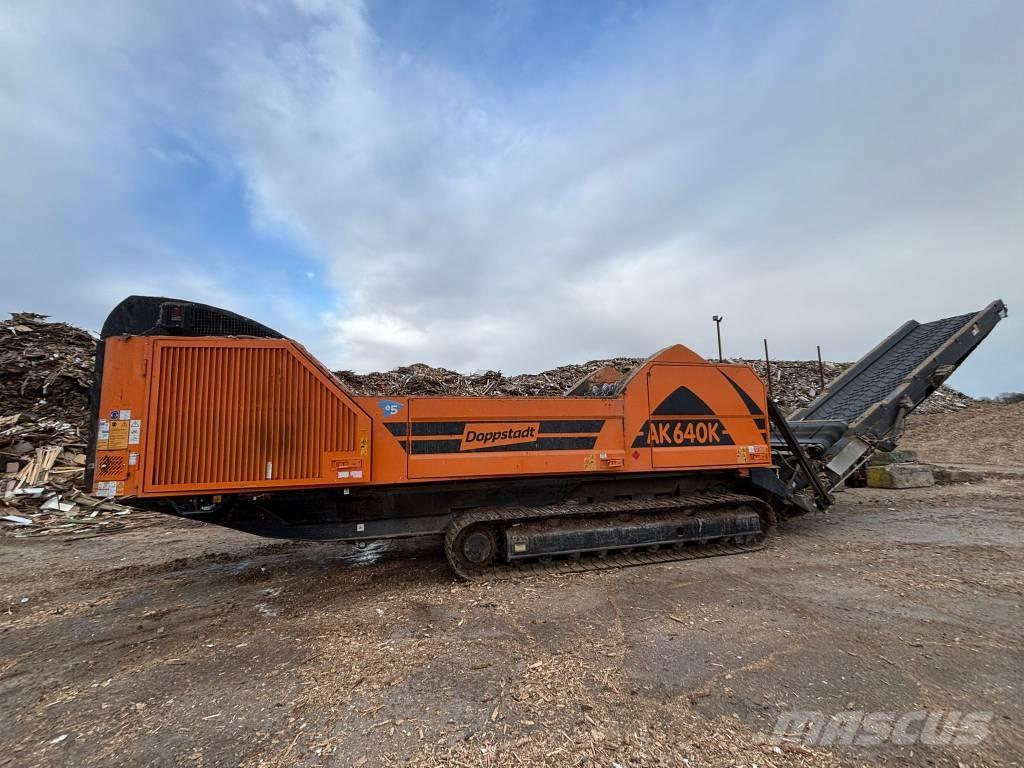

Doppstadt AK640K

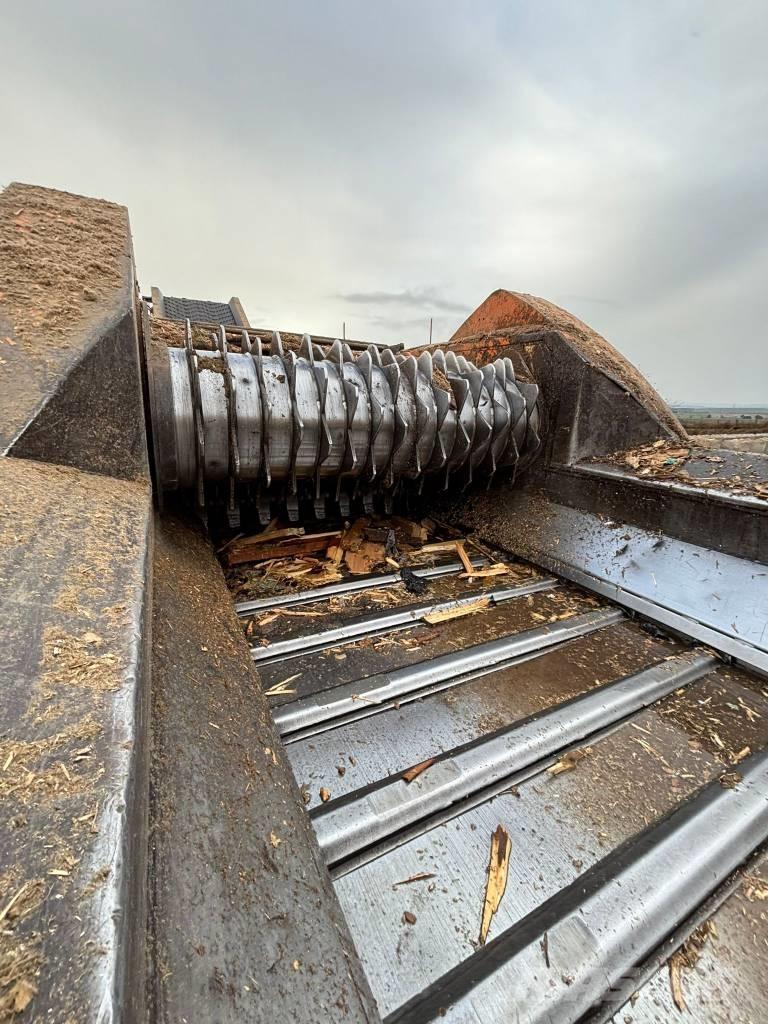

Designed for heavy-duty applications such as waste wood, green waste, biomass, compost, large logs, pallets, etc. DIMENSIONS Chassis: Track-mounted chassis Total weight (kg): 32,500 Transport length (mm): 10,020 Transport width (mm): 3,000 Transport height (mm): 3,390 3,590 (with off-road chassis) Length (mm): 15,910 Width (mm): 3,000 Height (mm): 5,090 5,290 (with off-road chassis) ENGINE Engine type: Diesel engine Manufacturer: MTU 6R1500 Emissions standard: Stage V EPA Tier 4f EIII A Motor power (kW / hp): 480 / 652 460 / 625 (EIII A) Tank capacity (l): 750 Torque (Nm): 3100 (Stage V) 2900 (EIII A) at 1300 rpm DISCHARGE CONVEYOR Width (mm): 1500 Length (mm): 7500 Belt speed (m/s): 2 Discharge height (mm): 5090 FLAIL DRUM Width (mm): 1750 Diameter (mm): 1120 Rotational speed (rpm): 970–1140 (depending on engine speed) Number of flails / teeth: 36 FEED HOPPER Fill width (mm): 3500 Loading height (mm): 2220 2420 (with off-road chassis) Infeed height (mm): 538 Materials Handled Forestry Wood Industry Sectors Forestry Wood Waste Processing
