BOUNDARY ELECTRIC

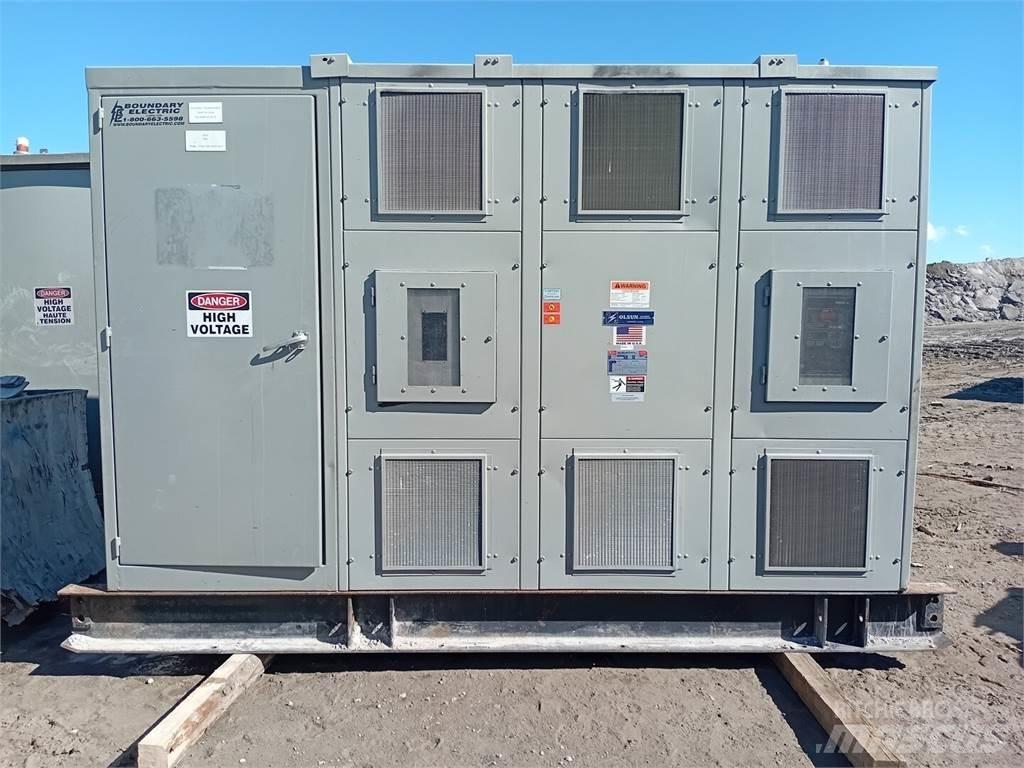

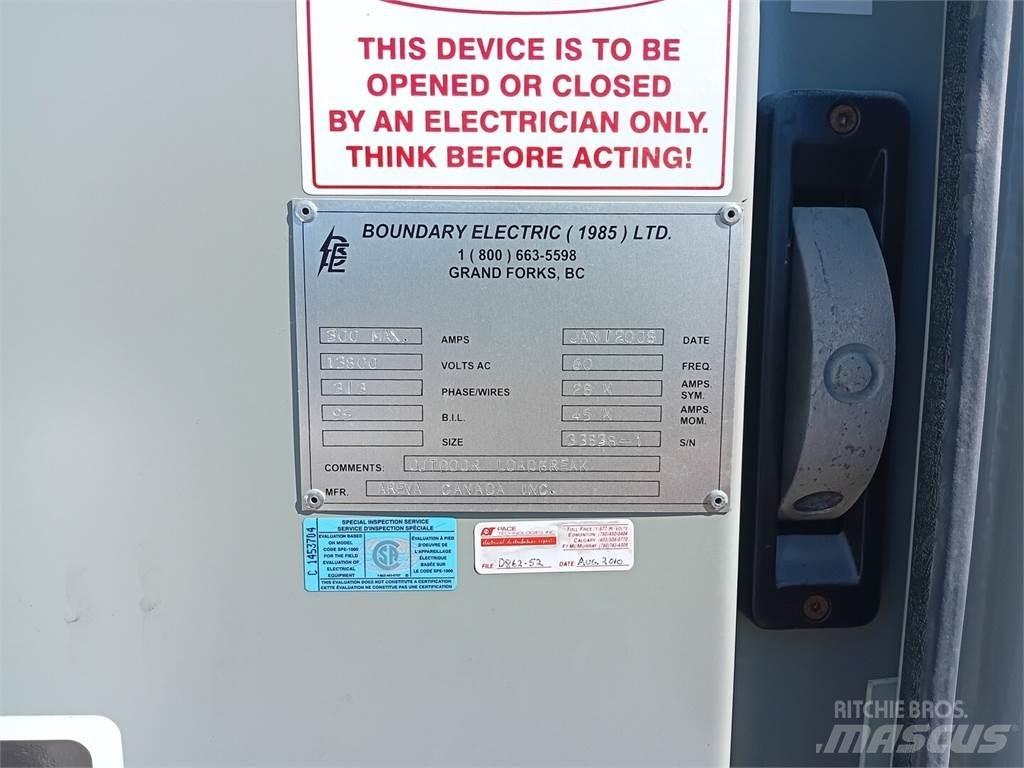

Outdoor Loadbreak w/ 2000 kVA Transformer, 13800V HV, 4160Y/2400V LV Title: Outdoor Loadbreak w/ 2000 kVA Transformer, 13800V HV, 4160Y/2400V LV SKU: 134970 Year: 2008 Condition: Used S/N: 33838-1 ElectricalkVA:2000kVA Primary Voltage:13800volts Secondary Voltage:4160/2400volts Phase:3-phase GeneralAuto VS Isolation:Isolation Oil vs Dry:Dry Enclosure Type:Nema 3R Dimensions: 95.00 (H) x 60.00 (W) x 144.00 (L) inches Transformer Specifications: - Make: OLSUN - Model/Part No.: - - Serial No.: A65219 133311 - Type/Class: - - kVA: 2000 - High Voltage: 13800V - HV BIL kV: 60 - Low Voltage: 4160Y/2400V - LV BIL kV: 30 Unit Manufacturer Specifications: - Make: Boundary Electric - Serial No.: 33838-1 - Year: 2008 - Amp: 300 - Voltage: 13800 - Phase/Wire: 3/3 - Frequency: 60 Hz - Amp Sym: 28k - Amp Mom: 45k
