COMAU NJ-220-2.7

Preis ohne MwSt.

Compnay LOGO
Images18

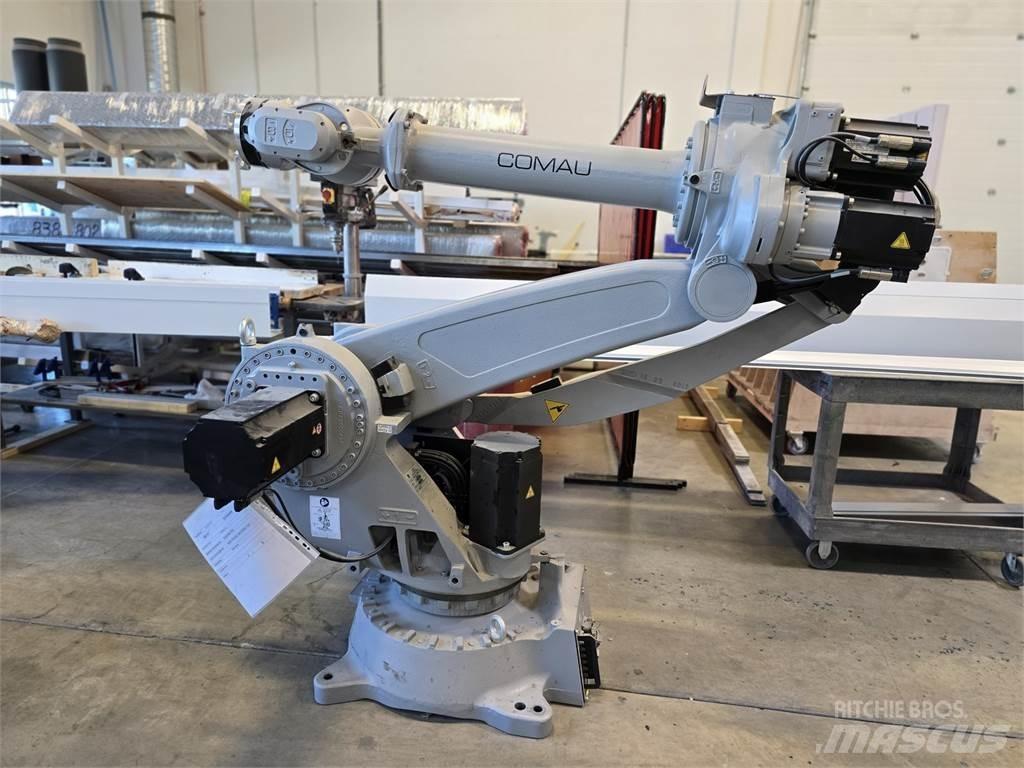

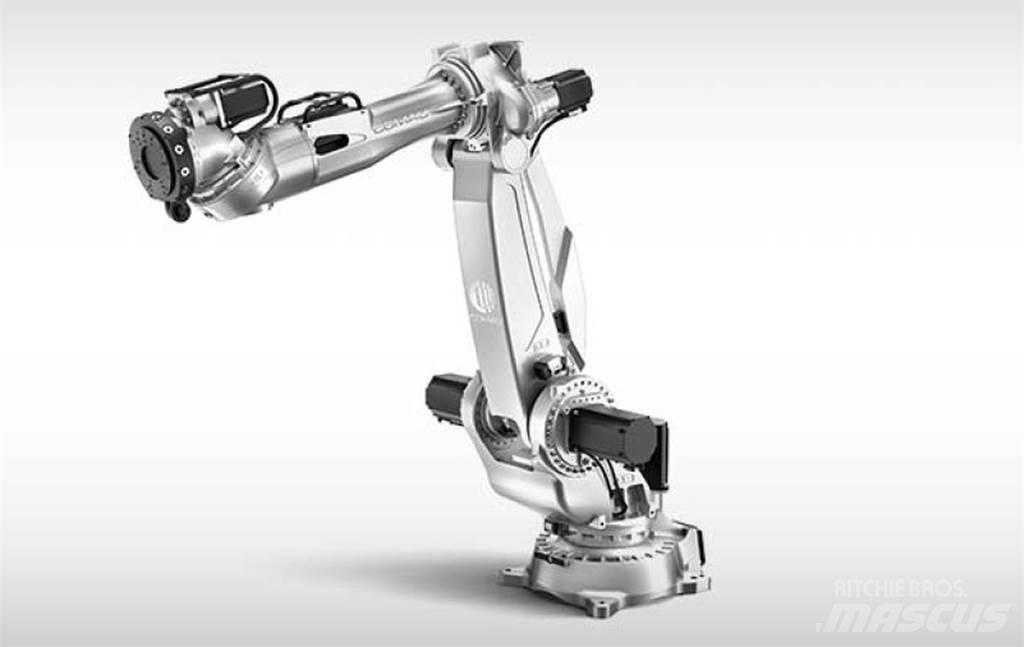

COMAU NJ-220-2.7 Sonstige Baumaschinen
COMAU NJ-220-2.7 Sonstige Baumaschinen
COMAU NJ-220-2.7 Sonstige Baumaschinen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Sonstige Baumaschinen
Marke / Model
COMAU NJ-220-2.7
Baujahr
2022
Zustand
Gebraucht
Maschinen Standort
Langley, British Columbia
Land
Kanada
Mascus ID
233C419F

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
123511
Zusätzliche Informationen

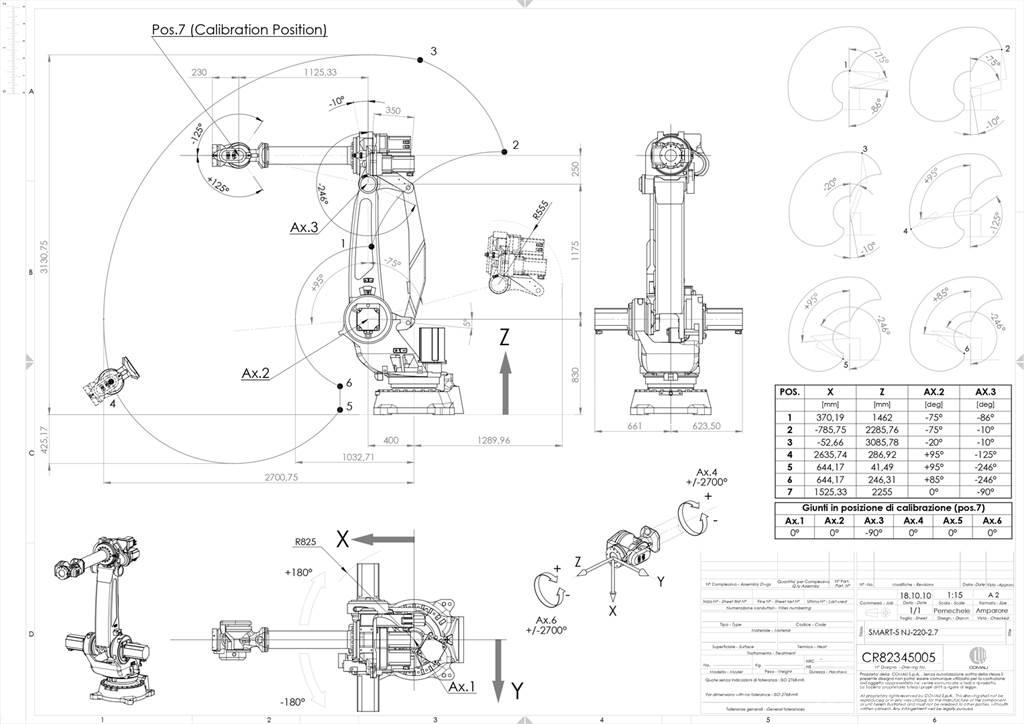

Smart5 6-Axis Foundry Robot Arm NJ-220-2.7 Title: Smart5 6-Axis Foundry Robot Arm NJ-220-2.7 SKU: 123511 Model: NJ-220-2.7 Year: 2022 Condition: Surplus New S/N: 2410230 Made In: ITALY Part No.: CR82359300 Number of axes: 6 Maximum wrist payload (kg): 165 Additional load on forearm (kg): 50 Maximum horizontal reach (mm): 3000 Torque on axis 4 (Nm): 1230 Torque on axis 5 (Nm): 1230 Torque on axis 6 (Nm): 712 Stroke (Speed) on Axis 1: +/- 180 deg. (100 deg/s) Stroke (Speed) on Axis 2: -95 deg. / +180 deg. (90 deg/s) Stroke (Speed) on Axis 3: -10 deg. / -256 deg. (110 deg/s) Stroke (Speed) on Axis 4: +/- 2700 deg. (130 deg/s) Stroke (Speed) on Axis 5: +/- 125 deg. (130 deg/s) Stroke (Speed) on Axis 6: +/- 2700 deg. (195 deg/s) Repeatability (mm): 0.09 Tool coupling flange: ISO 9409-1-A160 Robot weight (kg): 1240 Protection class: IP65 / IP67 Mounting position: Floor / Ceiling Operating Areas A (mm): 3430 Operating Areas B (mm): 3000 Operating Areas C (mm): 2600 Operating Areas D (mm): 730 Operating Areas E (mm): 738Mehr anzeigen

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
