Produktgruppe
Sonstige Baumaschinen
Marke / Model
MAGGI Big 800
Baujahr
2006
Zustand
Gebraucht
Maschinen Standort
Langley, British Columbia
Land
Kanada
Mascus ID
3F93C831

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
129502
Zusätzliche Informationen

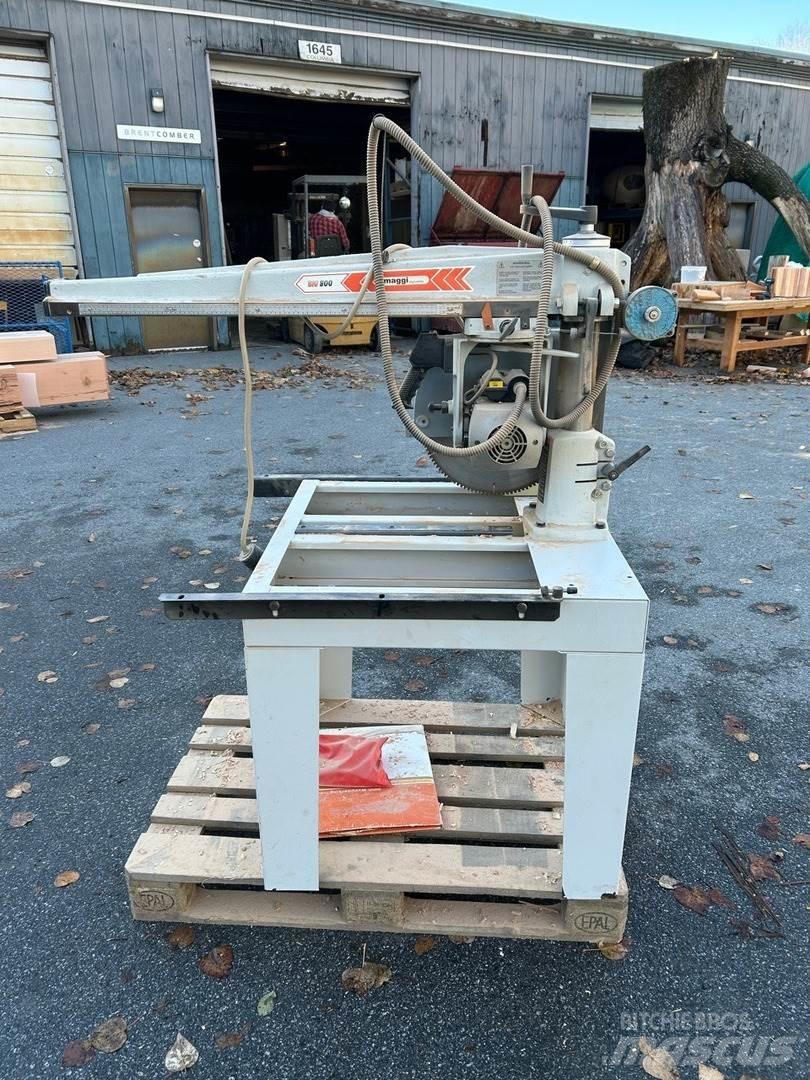

16" Radial Arm Saw Big 800 Title: 16" Radial Arm Saw Big 800 SKU: 129502 Model: Big 800 Year: 2006 Condition: Used S/N: 1550600149 GeneralHorsepower:4hp Blade Diameter:15.75 in Voltage:230volts Phase:3-phase Saw Type:Radial Arm Saws Made In: ITALY Dimensions: 63.00 (H) x 61.00 (W) x 67.00 (L) inches **Includes 2 saw blades Motor Speed: 2800 rpm Blade diameter: 400 mm | 15.75" Blade bore diameter: 30 mm | 1.18" Shaft dimension: 25 x 80 mm | 0.98" x 3.14" Dust chute diameter on blade guard: 60 mm | 2.36" Rear dust chute diameter: 100 mm | 3.93" Max. cutting height: 125 mm | 4.92" Max. cutting width: 705 x 20 h mm | 27.75" x 0.78" h Min. cutting width: 610 x 125 h mm | 24" x 4.92" h Height of blade at 45° from the table: 0 - 80 mm | 0 - 3.14" Min. and Max. cutting width at 45° (right): 430 - 500 mm | 16.92" - 19.68" Min. and Max. cutting width at 45° (left): 240 - 310 mm | 9.44" - 12.20" Height of blade from working bench: 0 - 45 mm | 0 - 1.77" Working bench dimensions: 1690 x 1155 x 25 mm | 66.5" x 45.5" x 0.98"Mehr anzeigen

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
