METALEC

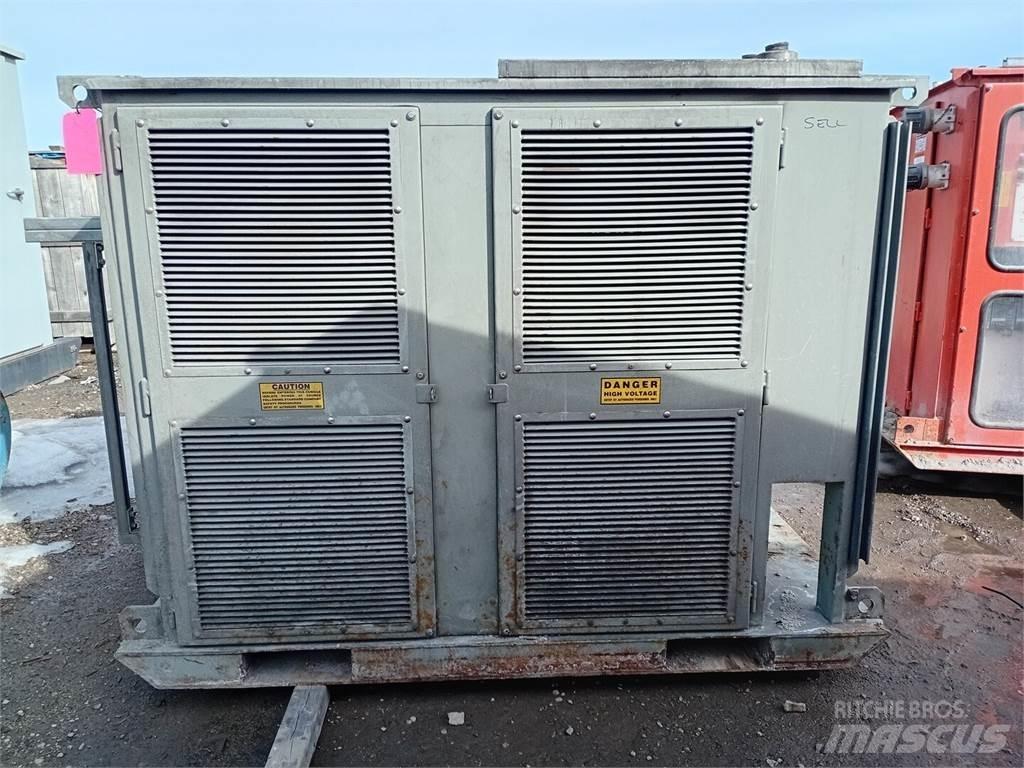

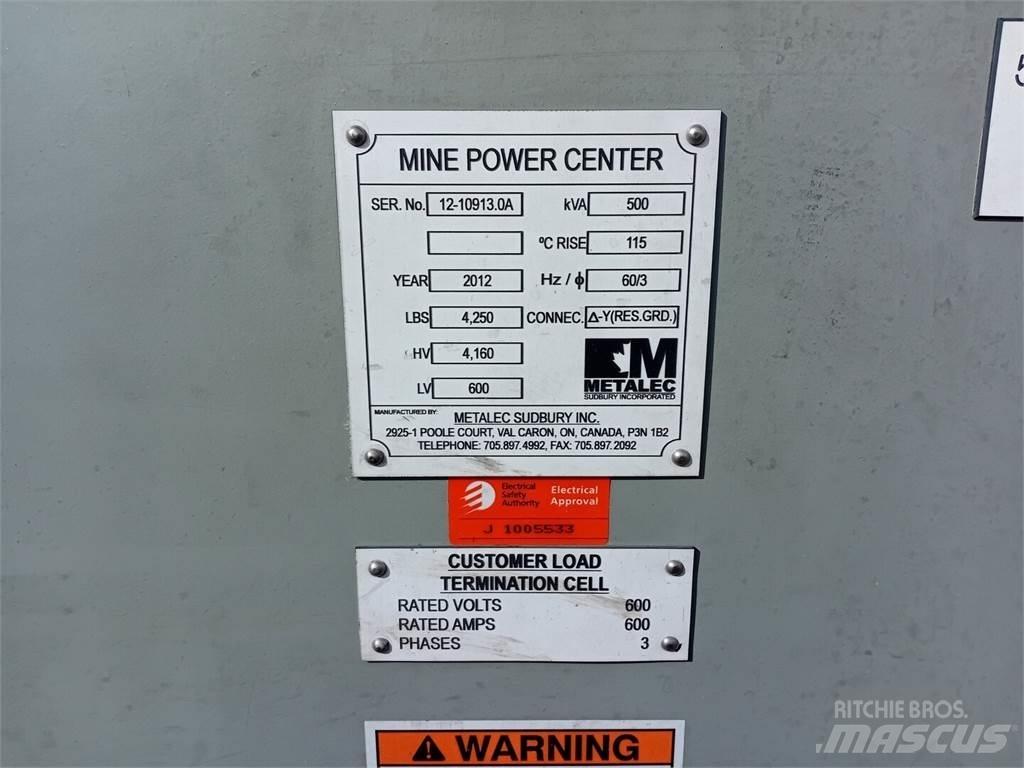

Underground Substation w/ 500 kVA Transformer, 4160V HV, 600Y/346V LV Title: Underground Substation w/ 500 kVA Transformer, 4160V HV, 600Y/346V LV SKU: 135018 Year: 2012 Condition: Used S/N: 12-10913.0A ElectricalkVA:500kVA Primary Voltage:4160volts Secondary Voltage:600/347volts Phase:3-phase GeneralTransformer Type:Substation Transformer Auto VS Isolation:Isolation Oil vs Dry:Dry Dimensions: 70.00 (H) x 50.00 (W) x 106.00 (L) inches [General Arrangement & Transformer Monitoring Wiring Diagram PDF](... Specifications: - Make: HAMMOND POWER SOLUTIONS INC. - Model/Part No.: 204630 - Serial No.: H12DB622 - Type/Class: AN - kVA: 500 - High Voltage: 4160 - HV BIL kV: 30 - Low Voltage: 600Y/346 - LV BIL kV: 10 Unit Manufacturer Specifications: - Make: METALEC SUDBURY INC. - Serial No.: 12-10913.0A - HV: 4160 - LV: 600Y/346V - kVA: 500 - Temp Rise: 115C - Weight: 4250 lbs
