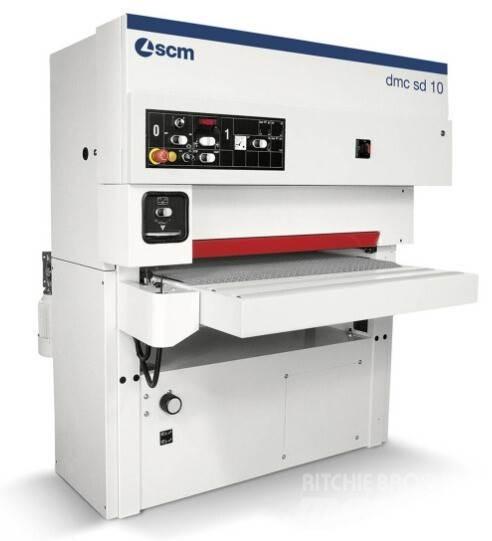

SCM dmc sd 10

dmc sd 10 composition CS 95 Automatic Single Head Wide Belt Sanders Title: dmc sd 10 composition CS 95 Automatic Single Head Wide Belt Sanders SKU: 90136 Model: dmc sd 10 Condition: New GeneralHorsepower:15hp Max. Workpiece Width:37.4" Max. Workpiece Thickness:6.7" Type:Belt ElectricalVoltage:600volts Phase:3-phase Made In: ITALY Dimensions: 65.70 (H) x 40.90 (W) x 54.60 (L) inches Number of Heads: 1 Min. Working Thickness: 4 mm Sanding Belt Width: 970 mm Sanding Belt Length: 1525 mm Feed Belt Motor Power: 0.3 / 0.55 kW (0.4 / 0.7 hp) Feed Belt Speed: 4.5 - 9 m/min dmc sd 10 composition CS 95 SINGLE COMBINED UNIT "CS" equipped with: 'CR/120' roller, 120 mm diameter: - 85 SH rubber coated roller - manual adjustment of working height 'TRP/I' flat stiff pad made of an extractable bar with felt contact insert density D=0.68: - manual adjustment of working height - glued graphite cloth "TSP/I" Semi-stiff flat pad For the sanding of veneered panels The pad is made of an extractable bar with rubber contact insert + felt density D=0.68 Additional Features - Automatic start-delta-start on main motor - 2 infeed support rollers and two outfeed support rollers - Electronic positioning for working table - Electronic readout in "inches" - Pallet + nylon - English machine plate
