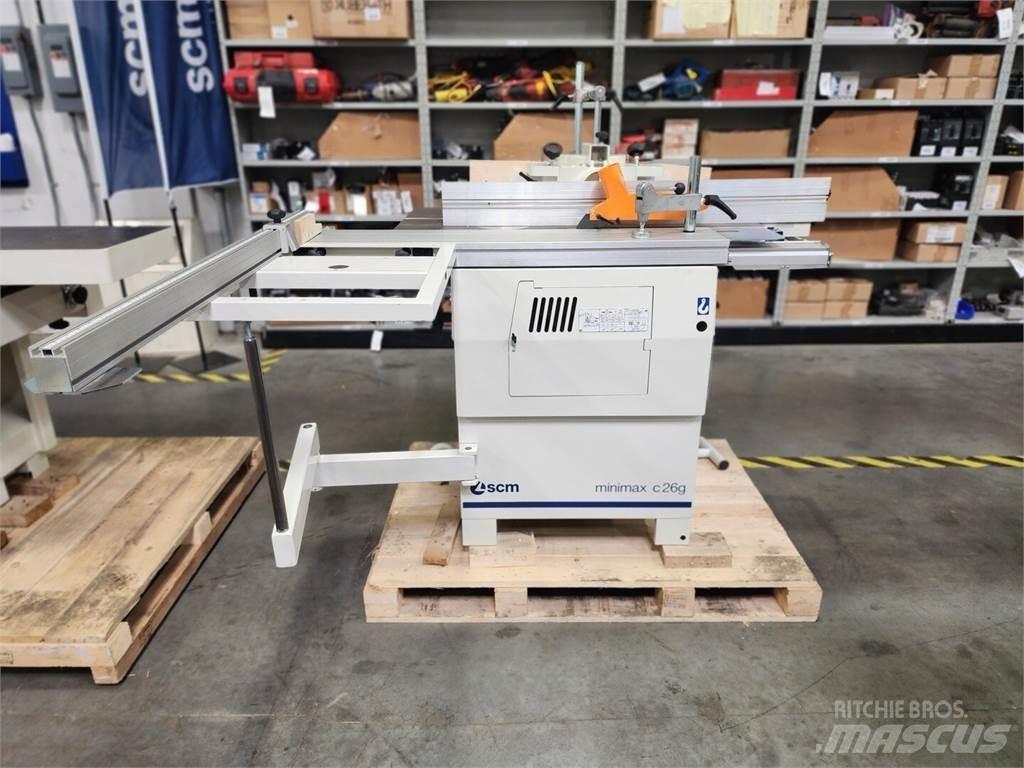

SCM minimax c 26g

minimax c 26g Universal Combo Machine Title: minimax c 26g Universal Combo Machine SKU: 90129 Model: minimax c 26g Condition: New GeneralHorsepower:3hp Blade Diameter:250 mm Voltage:230volts Phase:Single-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 52.50 (H) x 51.50 (W) x 68.25 (L) inches ** Combination machine of Planer, Jointer, Saw, Router Planer "Tersa" cutterblock" 62 mm diameter with 3 knives with rapid locking system Max. Stock Removal: 3 mm Surfacing Tables Total Length: 1040 mm Thicknessing Table Dimensions: 260 x 450 mm Feed Speed on Thicknesser (m/min): 6 Min./Max. Working Height on Thicknesser: 3/200 mm Circular Saw Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1024 x 224 mm Blades Tilting: 90o / 45o Max. Saw Blade Projection from Table at 90o / 45o: 75 / 60 mm Max. Squaring Stroke: 1200 mm Cutting Width on Parallel Fence: 500 mm Spindle Moulder Available with the Following Spindle Diameters: 30, 1-1/4" Max. Useful Spindle Length: 75 mm Spindle Moulder Speeds ... 50 Hz: 5000 / 7500 rpm Max. Tool Diameter when Profiling: 160 mm Max. Diameter of Tool Lowered Under the Table at 90o: 145 mm Squaring Frame Complete with: - fence with 1 stop - eccentric clamp - support Additional Features - Exhaust Outlets Diameter: 120 mm - Spindle moulder shaft of 1-1/4" - Wheels for machine movement - Locking by countersunk socket screw - Triple wall - Machine language: English [PDF Brochure](... Footprints](...
