SCM minimax sc 4e

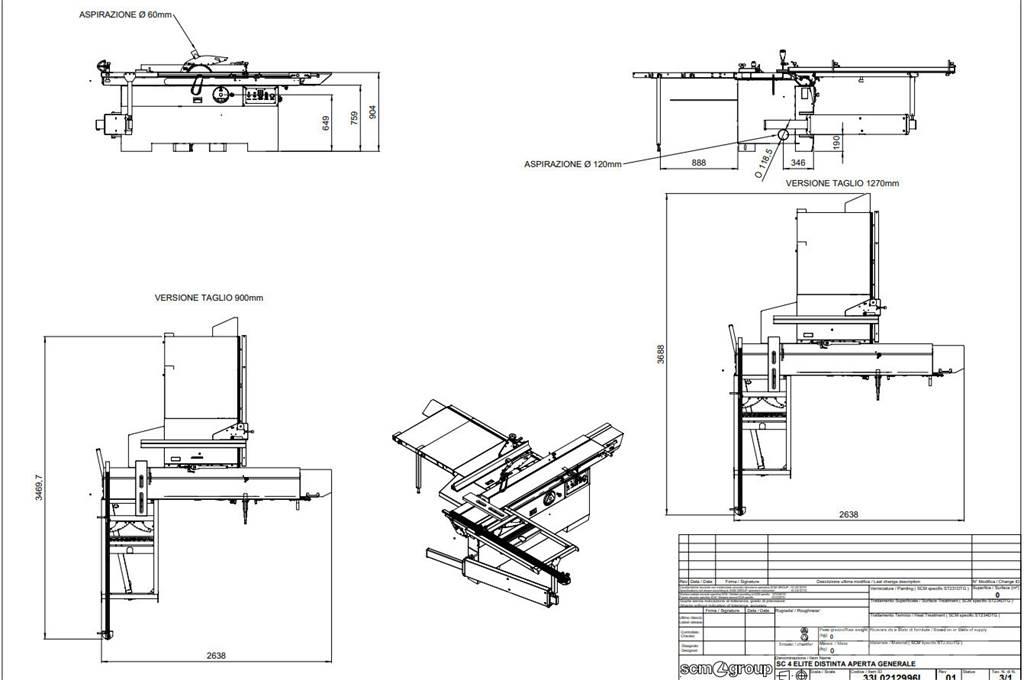

minimax sc 4e Circular Saw with Tilting Blade Title: minimax sc 4e Circular Saw with Tilting Blade SKU: 90100 Model: minimax sc 4e Condition: New GeneralHorsepower:4.8hp Table Size:33" x 22" Blade Diameter:12 Voltage:220volts Phase:Single-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 43.70 (H) x 188.00 (W) x 237.80 (L) inches Cast iron saw-spindle moulder worktable dim.: 840 x 560 mm Blades Tilting: 90 / 45 deg Max. Saw Blade w/ Scoring Blade Installed: 315 mm Max. Saw Blade Projection from Table at 90 / 45 deg: 100/71 mm - 3.94/2.75 in. Max. Squaring Stroke: 2600 mm Cutting width with parallel fence: 1270 mm Additional Features - Belt driven scoring unit complete with blade: - With external setting up - Blade diameter 100 mm Z 20 - "Dado set" capability: - (Tools with max. diameter 203.2 mm / 8" excluded) - The machine is supplied with saw spindle, 5/8" diameter (1 on si 315es and si 400es) - Angular cutting device with flip-over stops, equipped with: - Telescopic fence with two flip-over stops - pre-set for angle rapid selection - Additional table on the sliding table, for the support of panels with large dimensions - Triple wall for 2600 mm sliding table [PDF Brochure](... Footprints](...
