SCM minimax si x

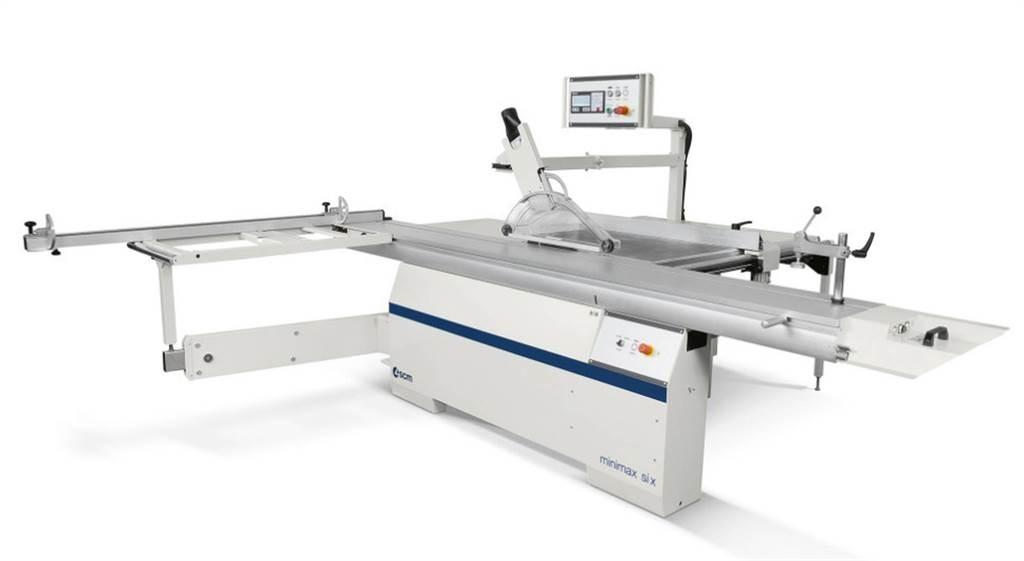

minimax si x Circular Saw w/ Tilting Blade (220v 3-Phase) Title: minimax si x Circular Saw w/ Tilting Blade (220v 3-Phase) SKU: 133951 Model: minimax si x Condition: New GeneralHorsepower:11hp Table Size:1000 x 685 mm Voltage:220volts Phase:3-phase Saw Type:Sliding Saw CNC:Yes Made In: ITALY Dimensions: 38.00 (H) x 190.00 (W) x 278.00 (L) inches Blades tilting: -46o to +46o Max. saw blade diameter with scoring blade installed: 400 mm Max. saw blade projection from table at 90o/45o: 136/97/60 mm Scoring blade diameter: 160 mm Max. squaring stroke: 3200 mm Cutting width on parallel fence: 1270 mm Scorer motor: 0.9 kW (1.2 hp) 60 Hz Exhaust outlets diameter: 120 - 80 mm Standard Equipment - Squaring frame (dimensions 1200 x 650 mm) with: - telescopic fence with 2 flip-over stops and metric rule tilted towards the operator - eccentric clamp - swinging arm support - idle roller to facilitate the panel loading/unloading - Dedicated saw parallel fence with: - "high rigidity" cast iron fence support - micrometric adjustment and cam-locking system - rectified steel round sliding bar, 45 mm diameter "Ready 3 UP" Version electronic control, 3 axes control - Control of blades unit lifting/tilting - Tools data setting with automatic height adjustment with respect to the tilting - Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs - Additional functions: calculator and hour counter - Powered parallel fence with electronic programmer - position readout on encoder - adjustment by means of recirculating ball screws - continuously adjustments by means of pushbuttons or automatic positioning - possibility of incremental positioning - possibility of fence exclusion Additional Features - Angular cutting device with flip-over stops, equipped with: - telescopic fence with two flip-over stops - pre-set for angle rapid selection - Squaring fence with no. 2 LCD readouts for stops position - Third squaring stop with LCD display for the position readout - Additional table on the sliding table - Crate - Triple Wall box - Delivery Ex Factory
