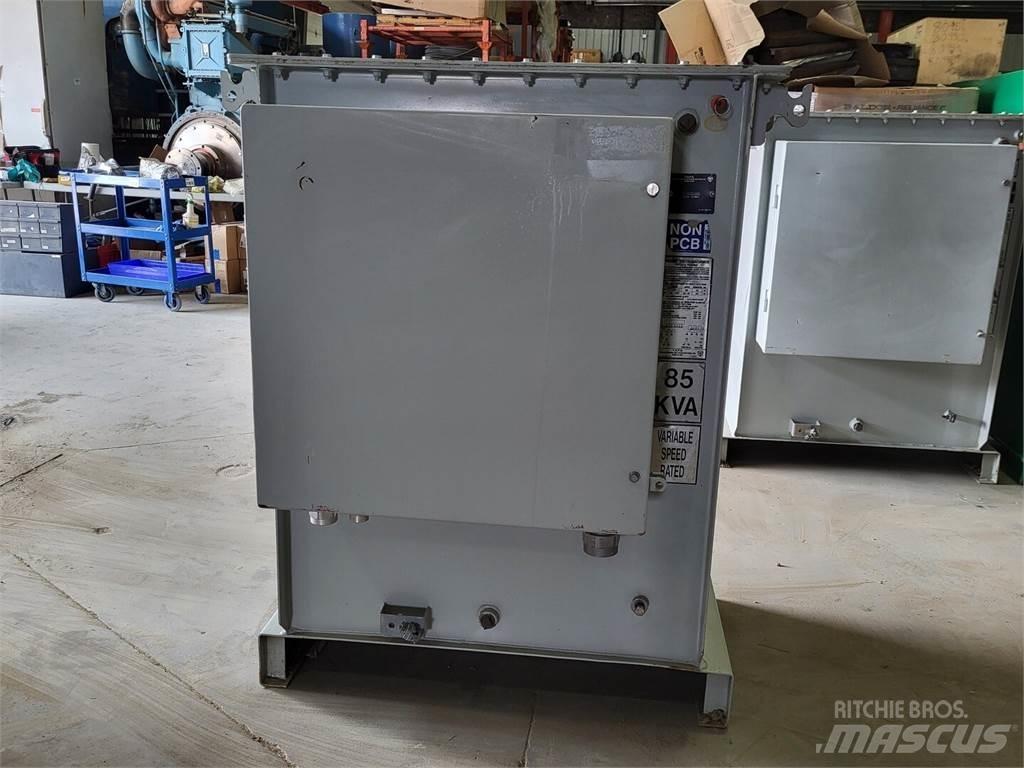

85 kVA VSD Transformer, 480-1900 pri. volts, sec 480 sec. volts
Title: 85 kVA VSD Transformer, 480-1900 pri. volts, sec 480 sec. volts
SKU: 138473
Model: PHASOR
Condition: Used

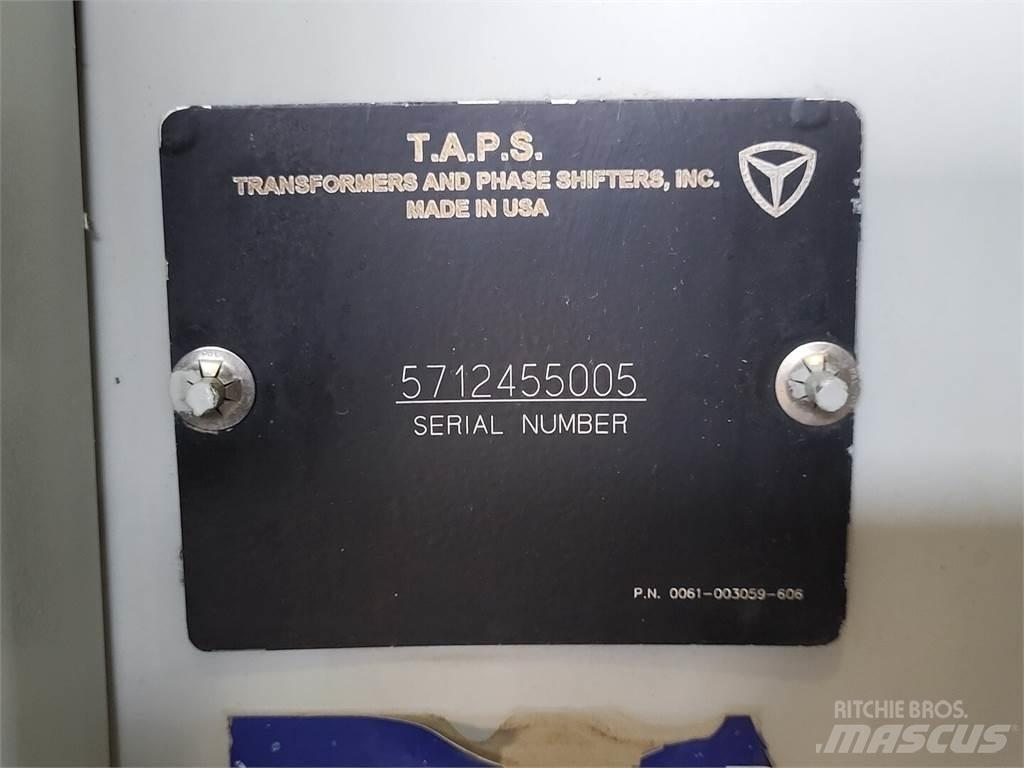

S/N: 5712455005

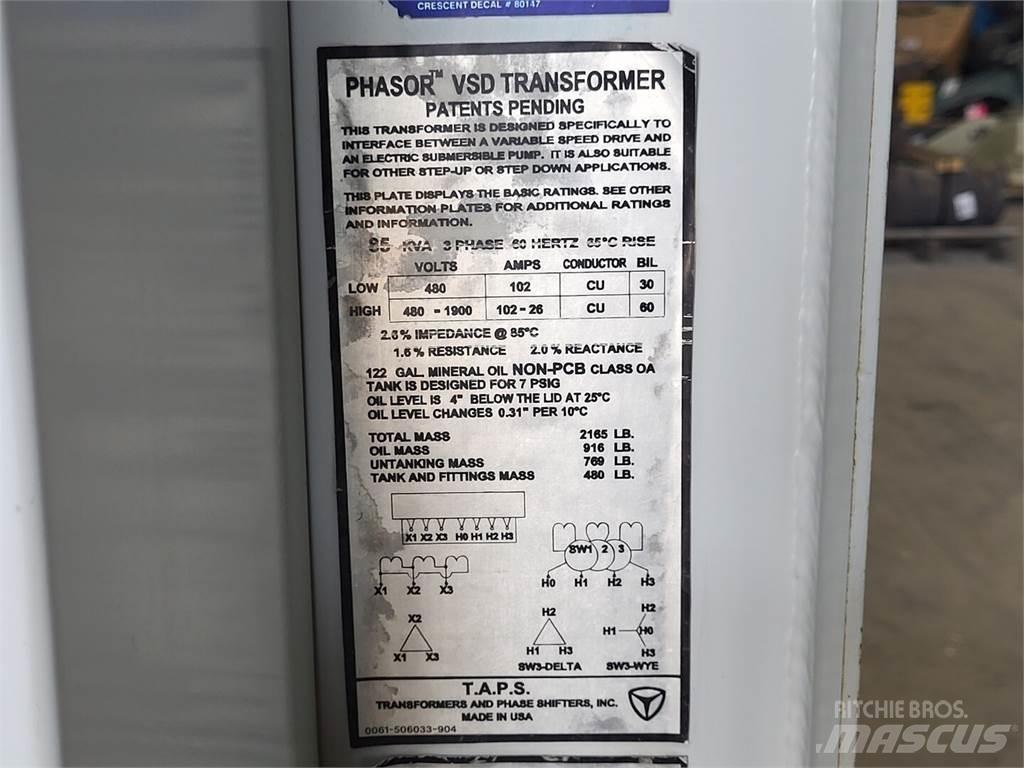

ElectricalkVA:85kVA
Primary Voltage:480-1900volts
Secondary Voltage:480volts
Phase:3-phase
GeneralTransformer Type:Distribution Transformer
Auto VS Isolation:Isolation
Oil vs Dry:Oil
Dimensions: 53.00 (H) x 35.00 (W) x 48.00 (L) inches
Phase: 3 Phase
Frequency: 60 Hz
Temperature Rise: 65°C
Voltage - Low (Secondary): 480 volts
Voltage - High (Primary): 480 - 1900 volts
Amps - Low: 102 A
Amps - High: 102 - 26 A
Conductor Material: CU
Basic Impulse Level (BIL): 30 kV (Low) / 60 kV (High)
Impedance: 2.6% at 85°C
Reactance: 2.0%
Resistance: 1.6%
Oil Type: Mineral Oil (Non-PCB, Class OA)
Oil Capacity: 122 gallons
Tank Pressure Rating: Designed for 7 PSIG
Total Mass: 2,165 lbs
Oil Mass: 916 lbs
Untanking Mass: 769 lbs
Tank & Fittings Mass: 480 lbs
Cooling Type: Oil Natural Air Natural (ONAN)Mehr anzeigen
