VIDIR

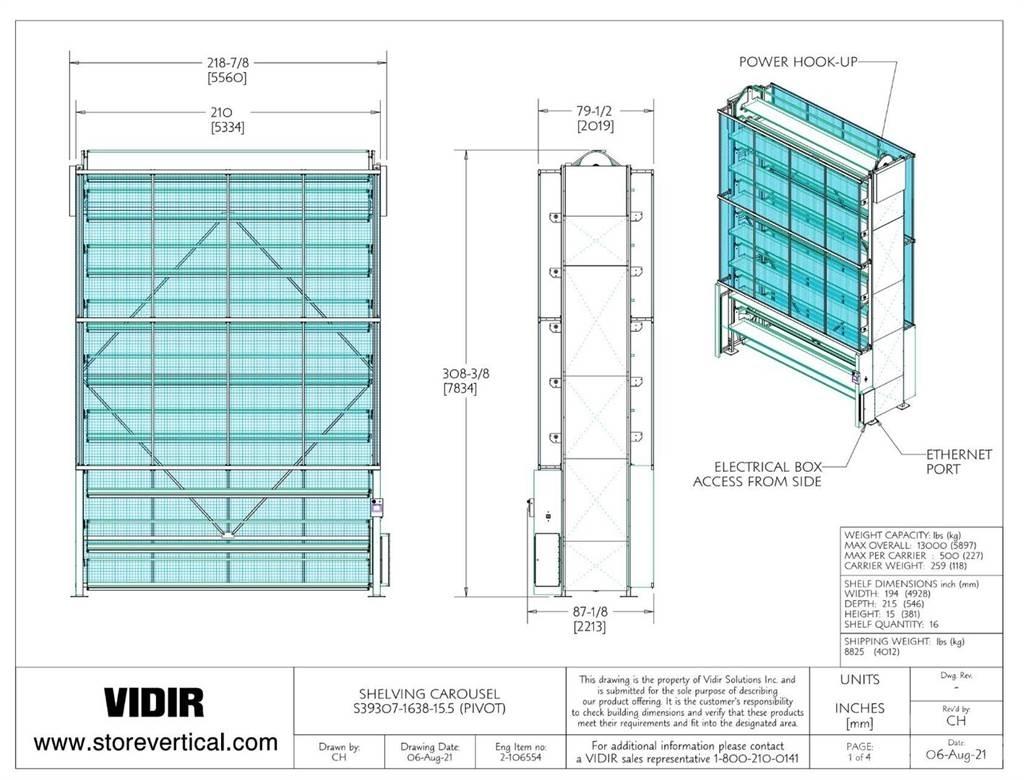

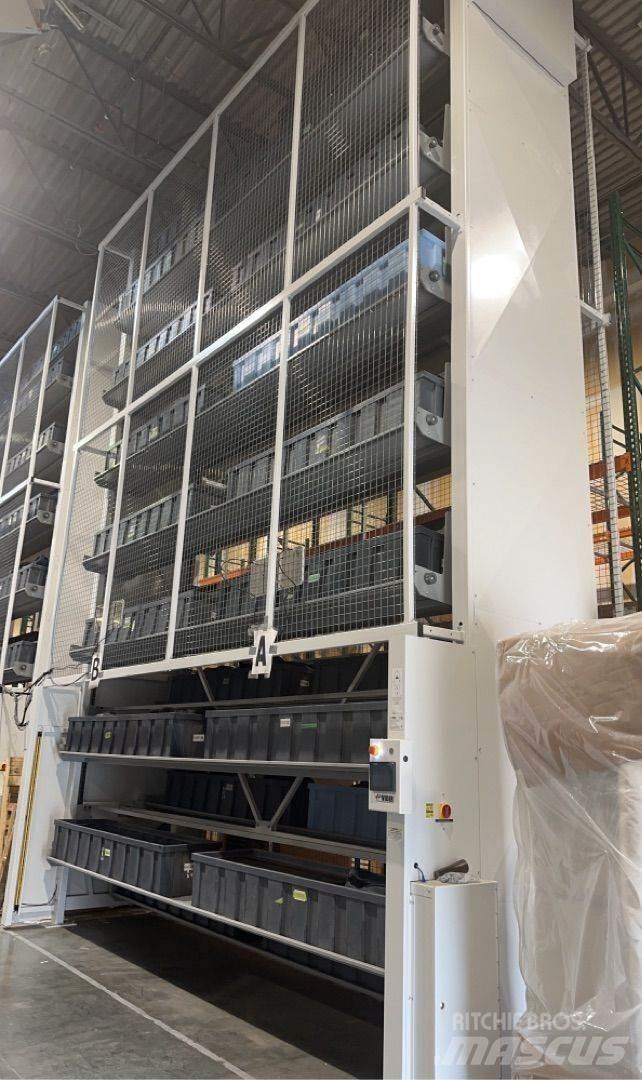

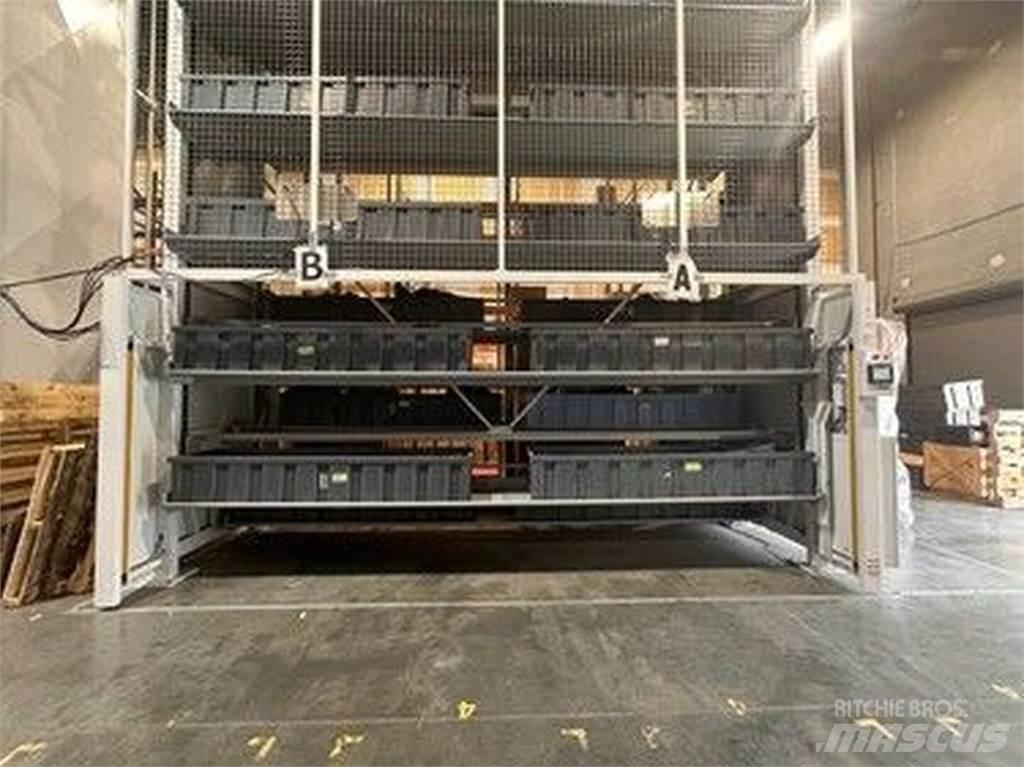

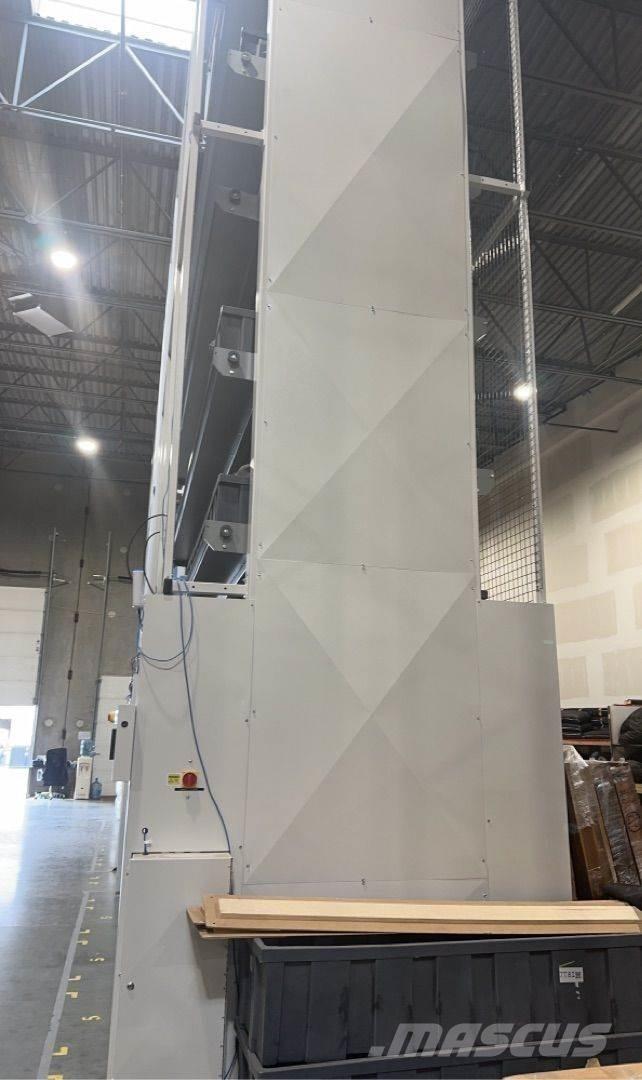

Shelving Carousel - Automated Warehouse Vertical Storage Solution Title: Shelving Carousel - Automated Warehouse Vertical Storage Solution SKU: 131984 Year: 2021 Condition: Used Overall Height: 25' 7" Overall Width: 18' 3" Overall Depth: 6' 5" Overall Weight Capacity: 8,000 lbs Carrier Features: 1.5" lip on the front and 4" lip on the back Total Carriers: 16 Maximum Weight per Carrier: 500 lbs Useable Carrier Width: 192" Useable Carrier Depth: 21.5" Useable Carrier Height: 15" Maximum Carrier Tilt: 10% Additional Carousel Options: Carrier Stabilizer Top Limiter Bar: Top Limiter Bar moved to the back of the carrier Drive System: (2) 2 HP Leeson Motors Carousel Electrical: 208V 3 Phase 15 Amp Drive Configuration: Variable Speed (VFD) Carousel Controls: ASRS 8.0 Auto-Retrieval Ethernet Port Externally: accessible ethernet port for carousel networking Control Features: Automatic Re-zero included Control Options: Mushroom E-Stop | Main Power Disconnect Control Location: Front Right Hand Tower Max. Retrieval Speed: 21' per minute Carousel Guarding: Uprights | 2" Wire Mesh Front/Back Foot Plate Dimensions: 9-1/2" x 6" x 3/8" Concrete Anchors: 5/8" HILTI KB-TZ wedge anchor Primary Carousel Color: VM Textured White Carrier Color: VM Textured Grey Technical Documentation Language: English
