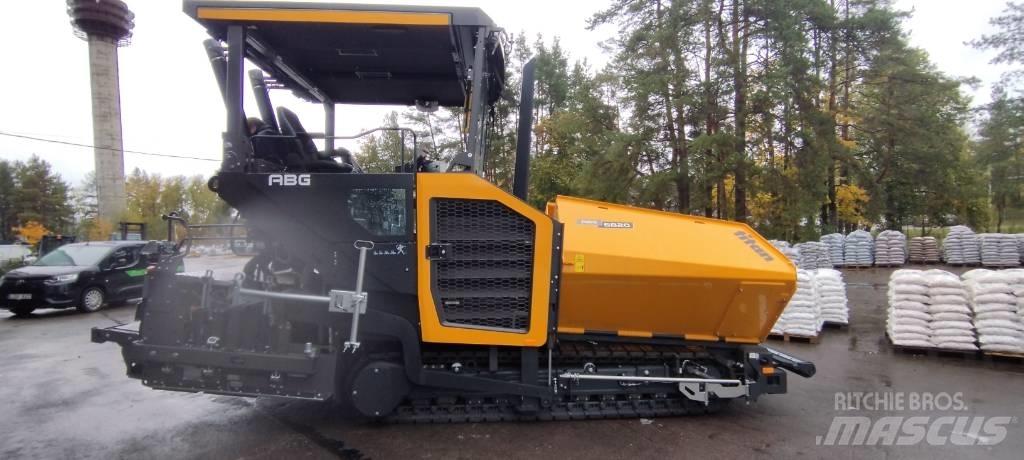

ABG 6820

Technical Specifications: Year of Manufacture: 2024 Operating Hours: 293 h Operating Weight: 18.2 t Engine: Volvo D6E Engine Power: 140 kW Engine Emission Standard: EU Stage V, T4f Theoretical Paving Capacity: 700 t/h Hopper Capacity: 13.5 t Track Length: 3000 mm Track Width: 300 mm Number of Conveyors: 2 Auger Diameter: 360 mm Screed: Telescopic Screed: VDT-V78 ETC (patented Duotamp technology). Basic Working Width: 2.5-5.0 m Maximum Paving Width: 9 m Screed Heating: Electric First Tamper Protrusion Setting: 0 / 3 / 6 / 10 mm Second Tamper Protrusion Setting: 5 mm Configuration: Set of extensions for the VDT-V78 ETC screed for working up to 6.5 m. Extensions with a hydraulic quick coupling system. CE marking. Central lubrication system. Automatic track tensioning system. Operator platform canopy with sound-insulating material and extendable parts. Automated canopy lifting without a manual lever. Front windshield with wipers. Individually controlled hopper sides. Hydraulically liftable front hopper apron. Hydraulically liftable augers. Set of sensors for monitoring auger height. "Screed Assist" screed load-relief system. "Screed anti-climbing lock" screed locking system. Hydraulic crown adjustment for the screed. Hydraulic height adjustment for the extending parts of the screed. Heated end plates for the screed. Hydraulic height control for the end plates of the screed. Replaceable lower part of the end plate – 12 cm "Edging shoes". Replaceable lower part of the end plate – 45º x 7 cm "Edging shoes". "Auger 7.5 m quick lock" system for quick auger connection. "Soft Dock" truck impact absorption system, oscillating and shock-absorbing. 160 mm diameter push-rollers. Reversible conveyors. Conveyor cover. Spray system with a tank, reel, and heavy-duty gun for spraying with special chemicals. Additional 230V socket. "Work Plus Kit" LED lighting package. Integrated leveling system kit. Slope sensor. 2 ultrasonic (Sonic 5) leveling height sensors. Cases for storing side leveling control units. Ultrasonic auger control sensors. LED Beacon. "White noise" reverse alarm. "Smart Dock" system. Light communication system with the asphalt delivery truck driver. Hydraulic scrapers located in front of the tracks. Fume extractor system. Deluxe seat with heating, phone charging, and a storage compartment. ERCO Technologies – a reliable supplier of road construction equipment in the Baltic States. To see more asphalt pavers, rollers, milling machines, crushers, screeners, or other equipment – visit our website or browse our other ads here on the Mascus platform. For sale is an ABG 6820 asphalt paver, comparable to other paving machines in its class such as the Vögele Super 1800-3i, Dynapac SD2500CS, Caterpillar AP555F, or Bomag BF 800 C. This tracked paver is ideal for a variety of paving jobs. #ABG6820 #AsphaltPaver #Paver #UsedPaver #ConstructionEquipment #RoadConstruction #Paving #Vogele #Dynapac #Caterpillar #Bomag #ErcoTechnologies
