Liebherr LV36

Preis ohne MwSt.

Preis auf Anfrage

Compnay LOGO
Images21
Liebherr LV36 Vibrationsramme
Liebherr LV36 Vibrationsramme
Liebherr LV36 Vibrationsramme
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Vibrationsramme
Marke / Model
Liebherr LV36
Baujahr
2022
Maschinen Standort
Elblag, warmińsko-mazurskie
Land
Polen
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
E1828C60

DETAILS

Letzte Inspektion
2025-06-06
Serien Nr.
110800
Produktionsland
Österreich
Zertifikate
CE
Dokumente
6a7be04c-aa4e-4dba-b187-fe4d9587a9b6-original.pdf
Zusätzliche Informationen

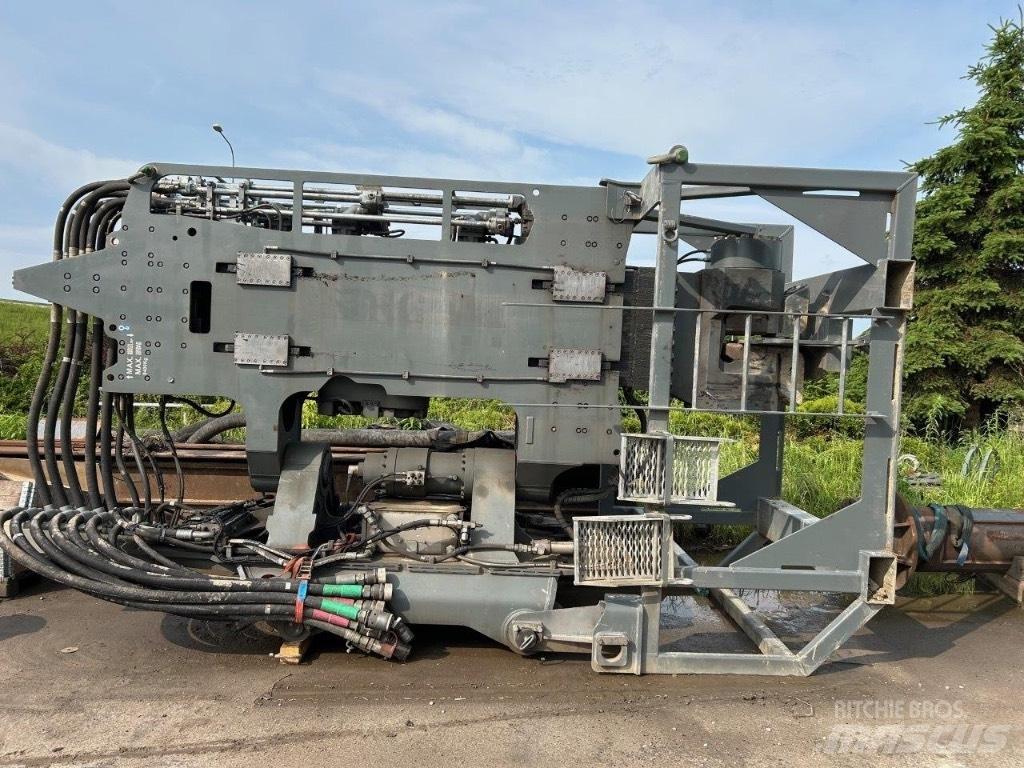

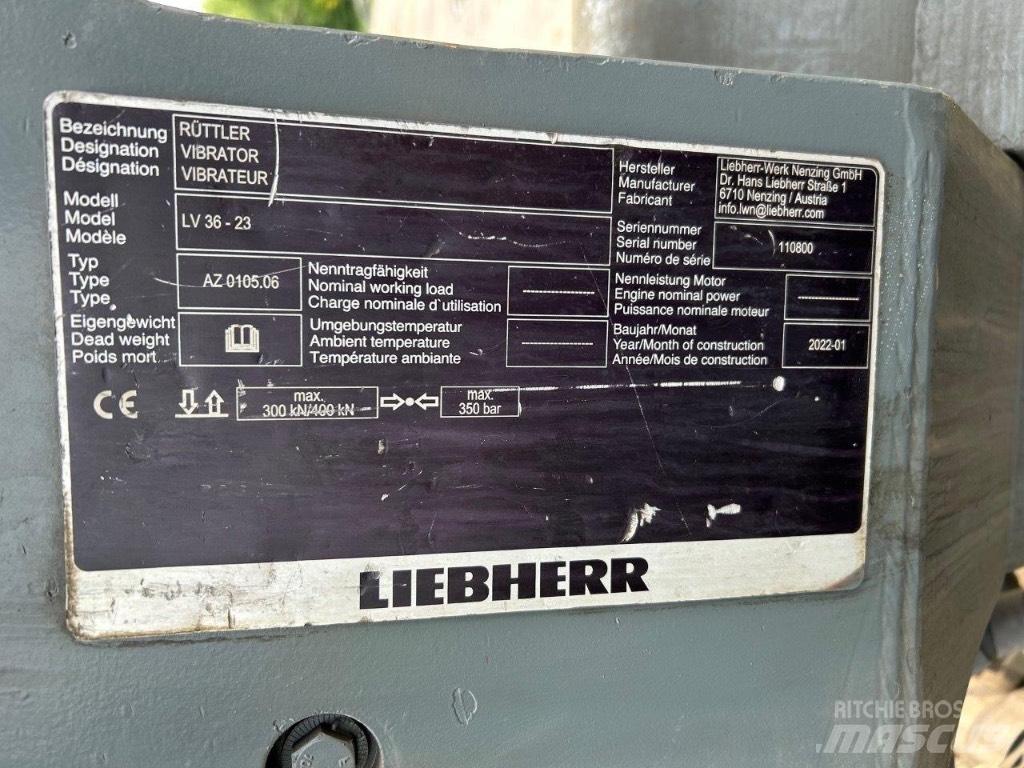

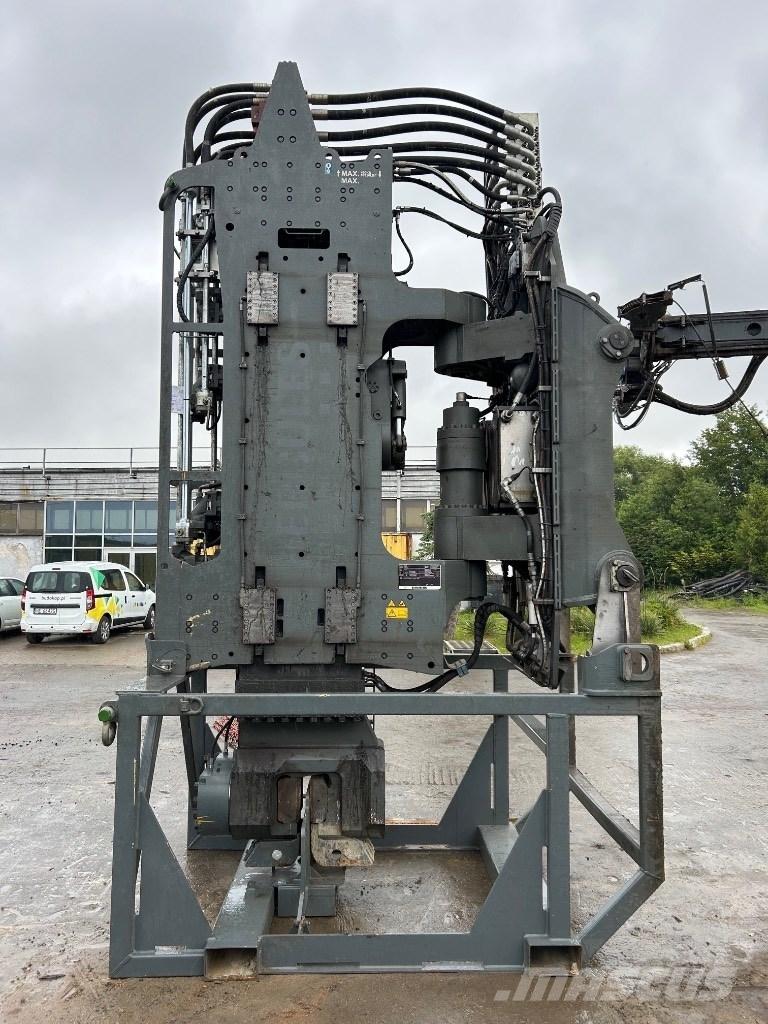

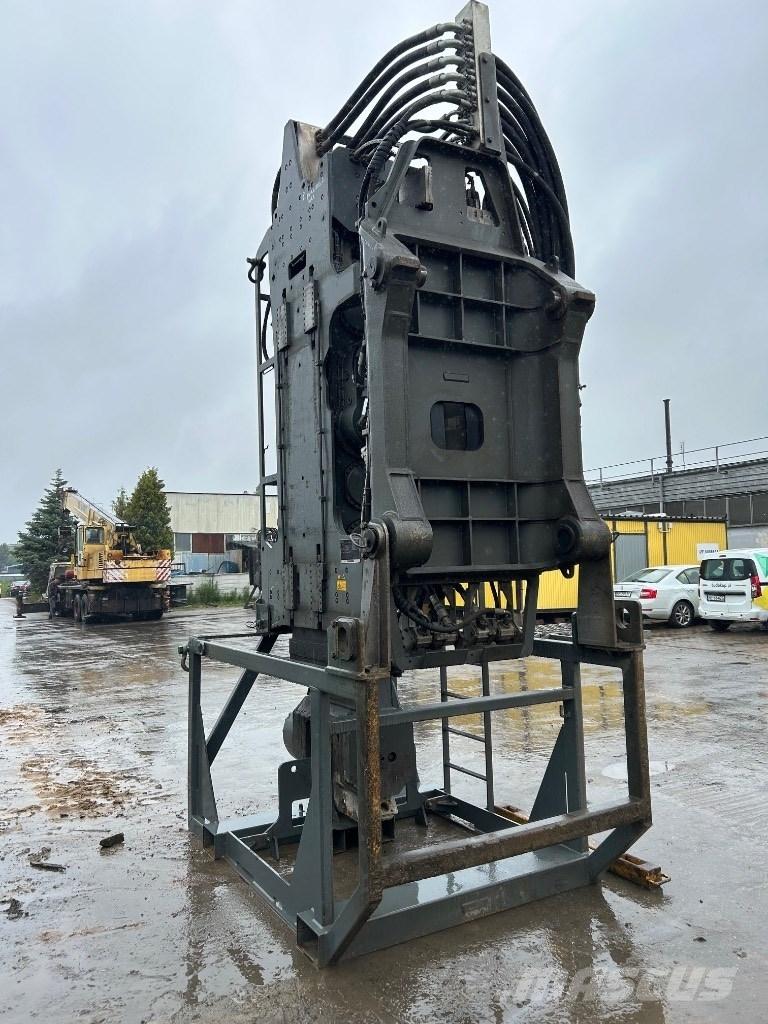

Liebherr LV 36-23, a high-performance vibrator head for driving sheet piles, steel tubes, beams, and trench support profiles. Manufactured in 01.2022, used very lightly – machine is in like-new condition, CE-marked, and ready for immediate deployment. Technical Specifications Model: Liebherr LV 36-23 Type: AZ.0105.06 Serial Number: 110800 Year of Manufacture: 2022 Total weight with clamp (240t): 11,165 kg Vibrator only (with clamp): 6,300 kg Total transport weight: 11,950 kg Max Centrifugal Force: 1,910 kN Static Moment: 36 kgm Max Frequency: 2,400 rpm Amplitude Range: ~16–19 mm Rotation Angle (swing head): ±87° Centerline Width: 560 mm Clamp Type: 240 t hydraulic clamp Mounting Compatibility: Liebherr LRB 23 Key Features Heavy-duty construction with large bearing assemblies Integrated oil circulation and cooling for extended operating time Automatic eccentric moment adjustment – maintenance-free Compact dimensions and optimal center of gravity Fully adjustable vertical positioning with ±87° swing CE certified, with full factory markings and documentation Compatible with LRB leader systems, plug-and-play hydraulic and electrical connections Visual & Functional Condition (Based on Photos) Frame & swing head: Clean paint, minimal wear Clamp unit: No visible cracks or oil leaks Hoses: As-new condition, clean fittings, original Liebherr labels Bearings & gear case: Dry, well-sealed, no operational leaks Overall impression: Near-factory condition – used extremely lightly Included in Sale Liebherr LV 36-23 vibrator body Hydraulic clamp (240t) Original transport bracket Factory hydraulic lines and quick couplings CE documentation and safety labels Price & Terms Net price: On request VAT: +23% (if applicable) Invoice: Full VAT invoice available Location: Elbląg, Poland Shipping: EU & worldwide delivery available Condition: Immediately available – ready to workMehr anzeigen
