Zul. Gesamtgewicht (US)
Schwertransporter - Klasse 7-8
Amtliches Kennzeichen
3ALHG3FM3SDVN2276
Motorleistung
368 kW (500 PS)
Getriebe
6-speed Allison 4500 RDS-P
Bereifung vorne
315-80-22.5
Zusätzliche Informationen

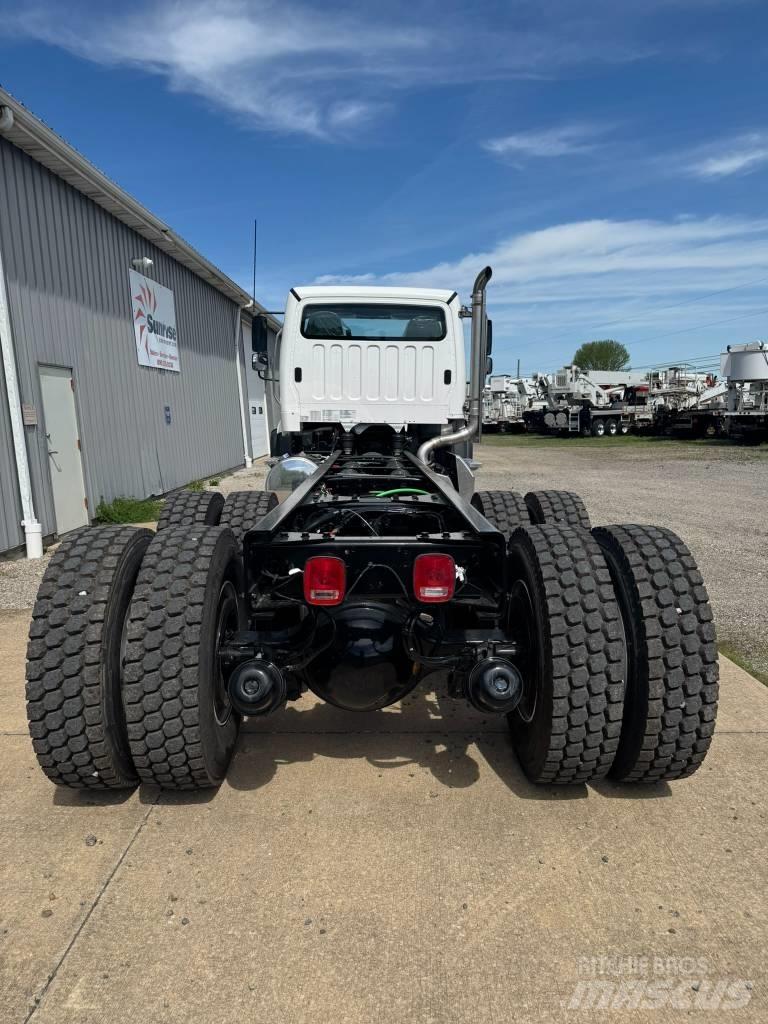

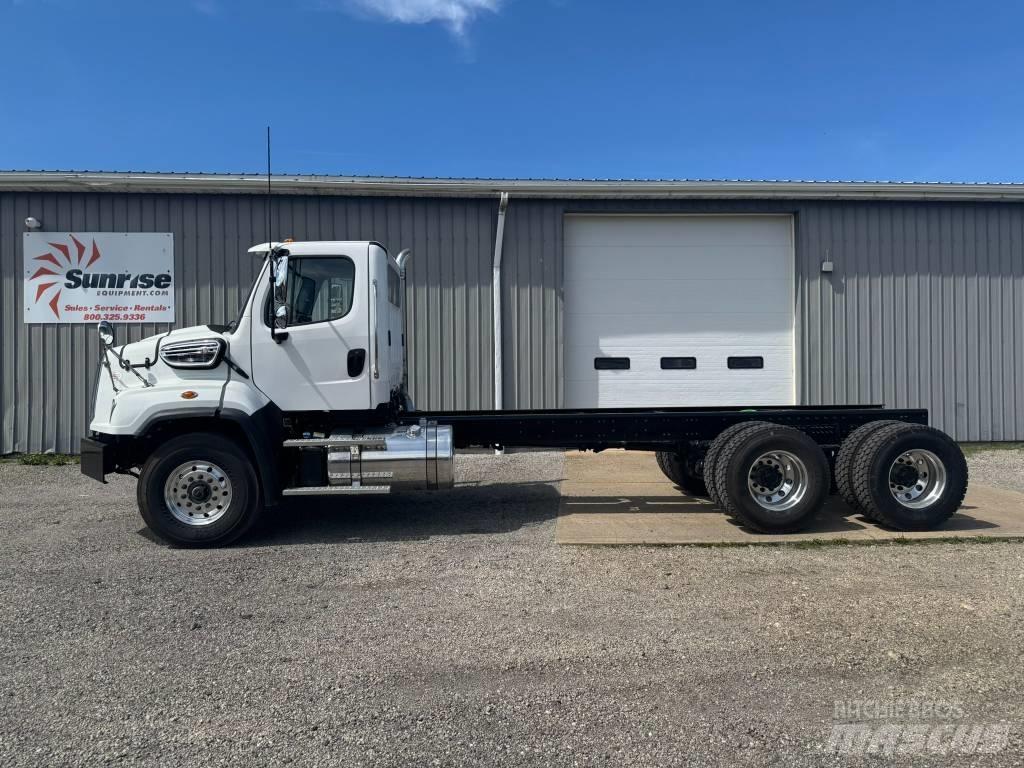

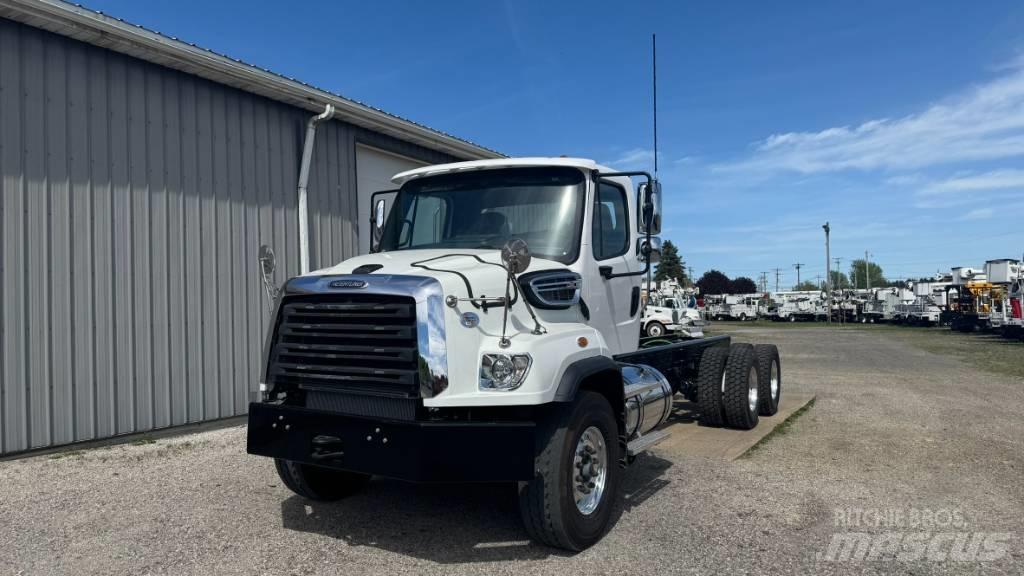

This 2025 Freightliner 114SD Cab & Chassis is built to handle the toughest jobs with durability, performance, and versatility in mind. Under the hood is a Cummins X12 500V diesel engine delivering 500 HP at 1900 RPM and 1700 lb-ft of torque at just 1,000 RPM. Paired with a 6-speed Allison 4500 RDS-P automatic transmission (with a PTO provision and 4″ sump, standard pan, 1810 half round output yoke), Equipped with twin power steering this drivetrain is built for demanding vocational applications. The truck features a massive 66,000 GVWR, supported by a 20,000 lb Detroit front axle and dual 46,000 lb rear axles with driver-controlled traction differentials. A rugged 1/2″ steel frame and Hendrickson Haulmaxx EX46000 lb rear suspension provide the strength and stability needed for heavy loads.
Designed for uptime and efficiency, this includes a Chelsea PTOs, a 13-gallon DEF tank, a stainless steel aftertreatment shield, and a Phillips-Termo 1500 watt block heater. The air intake system features a firewall-mounted Donaldson air cleaner, complemented by a RH Vertical tailpipe and horizontal aftertreatment setup. The truck is equipped with Wabco 4S/4M Meritor Q+ cam brakes with dust shields, and MXL 18T Meritor extended lube driveline for reduced maintenance.
This 114SD is equipped with a rugged trim package and a 75 MPH road speed limit. It rides on Bridgestone M870 315/80R22.5 front and Continental HDC3 11R22.5 rear radial tires, mounted on Accuride aluminum wheels. The cab features air-over-shock mounts, a bright finish grille and bezel, flexible fender extensions, an adjustable tilt/telescoping steering wheel, and a multi-band AM/FM/WB/CB antenna system. With six extra programmable switches/indicators already installed, this chassis is ready to be customized for your unique application.
Whether you’re building a dump, crane, or specialty vocational truck, this Freightliner 114SD provides a high-performance platform engineered to deliver under pressure.
Wheel Base: 240″
Cab to Trunnion: 174″
Cab to End of Frame: 227″
Trunnion to End of Frame: 53″
Cab to Center Front Axle: 148″
Cab to Center Rear Axle 203″
Overall Length: 29′
Width: 98″
Height: 10’2″
Year:2025
Make:Freightliner
Model:1145D
Miles:579
Engine:Cummins X12 Diesel Engine
Transmission:6-speed Allison 4500 RDS-P automatic transmission
Horsepower:500
Front Tires:315-80-22.5
Rear Tires:11R 22.5
Front Axle:20,000 lb
Rear Axle:23,000 Inner & 23,000 Rear
Brakes:Air
GVWR:66,000
Wheels:10 Hole Motor
CA CT:174"
Other:A/C, AM/FM/Bluetooth, 2 Bucket Seats, 1-70 Gallon Fuel Tank, Power Windows, Locks, Mirrors Heated MirrorsMehr anzeigen
