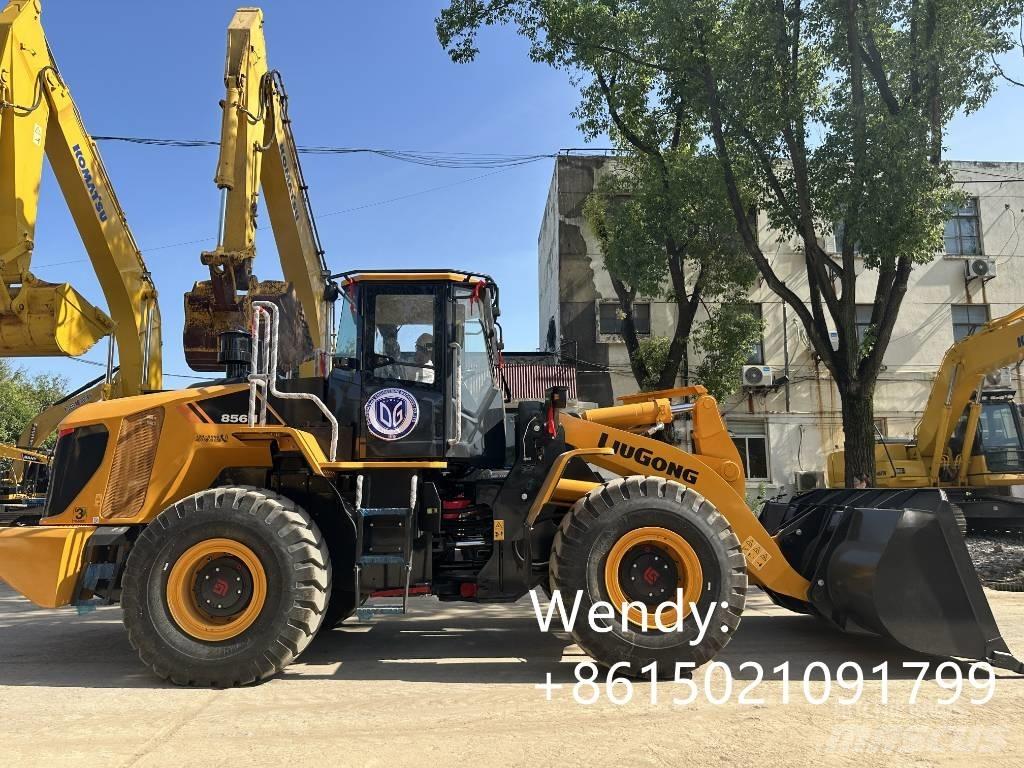

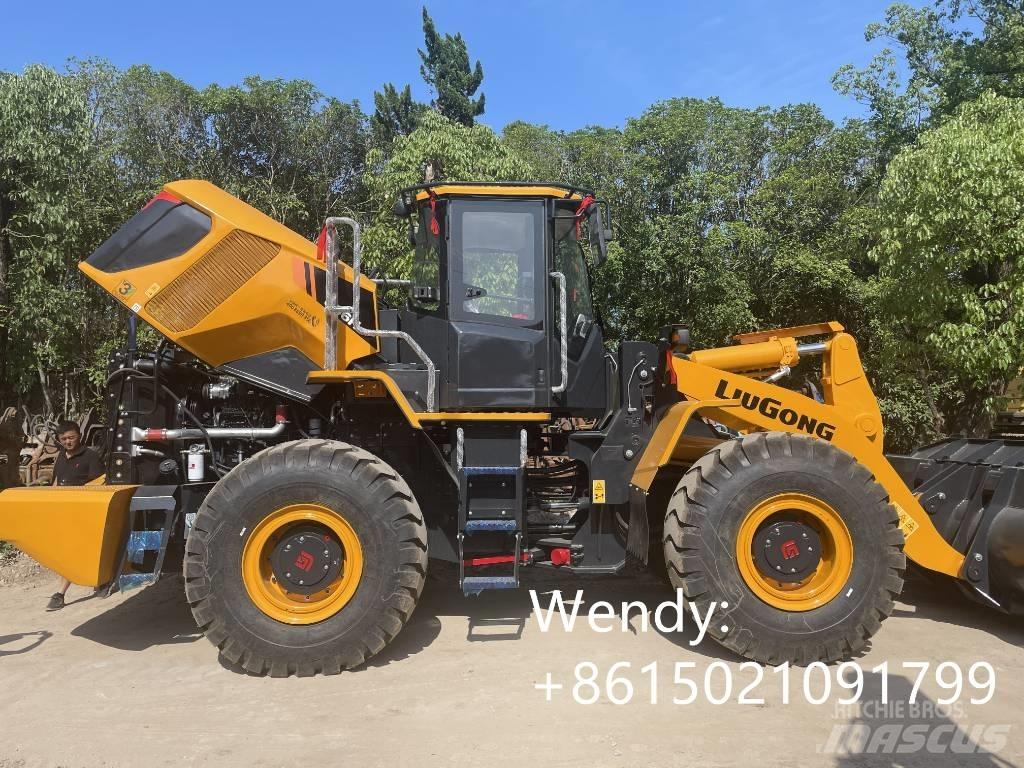

Liugong 856 H

Preis ohne MwSt.

FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Radlader
Marke / Model
Liugong 856 H
Baujahr
2023
Zustand
Demo-Maschine
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
D35C3B91

PREISANGABE

Währung auswählen

DETAILS

Typ
Diesel
Dienstgewicht
5.000 kg
Max. Traglast
16.900 kg
Karosserietyp
Fester Rahmen
Kabinentyp
Geschlossene Kabine
Emissionsklasse
Emissionsklasse 4 / Tier IV final
Motor
康明斯 QSL9.3
Schaufelvolumen
5,60 m3
Motorleistung
175 kW (238 PS)
Motorhersteller
Commins
Höchstgeschwindigkeit
37 km/h
Leistung der zusätzlichen Hydraulik
865 l/min
Transportabmessungen (L x B x H)
8230 x 2970 x 3500 mm
Originalfarbe
Original
Reifenmarke
liugong
Produktionsland
China
Lieferbedingungen
FCA, CPT, CIP, DAT, DAP, DDP, FAS, FOB, CFR, CIF, EXW
Zubehör
GPS
Klimaanlage
Motorvorfilter
Skeletteimer
Mehr anzeigen
Zusätzliche Informationen
The engine of the Liugong 856H adopts high-pressure common rail technology and variable geometry turbocharger, with a maximum digging force of 175kN. The constant variable hydraulic system is controlled by load-sensitive technology, which can save 12%-15% fuel compared to traditional models. The three-level power mode can adjust energy consumption as needed. The heavy-duty integral bridge has a load-bearing capacity increased by 40%, and the key structural components have been verified for durability for 38,000 hours. The engine overhaul cycle exceeds 4 years. The panoramic micro-pressure boost cab is equipped with a constant temperature air conditioner and anti-glare instrument panel. The 360° field of vision design reduces operational fatigue, and the pilot handle integrates the KD downshift function. The electric hydraulic lifting cover supports ground maintenance, and the 500-hour maintenance cycle is combined with a series of air filters (replaced every 1,000 hours), significantly reducing downtime. Mining and steel industry: Demonstrates high reliability in coal yards and ore transportation, with a single equipment annual oil cost savings of over 110,000 yuan. Port logistics: With a 19.5MPa hydraulic system pressure and a 3m³ standard bucket capacity, it efficiently completes bulk cargo loading and pushing and stacking tasks. Infrastructure projects: The extended wheelbase (3320mm) and large-angle bucket design adapt to material transportation in complex environments such as plateaus and tunnels. Compliant with Euro IV emission standards, it is recognized in the European market for its low noise and high maintainability. This model won the first prize in the Guangxi Industrial Innovation Competition through the "Global Market Development" project, achieving international leading levels in core indicators such as energy efficiency and reliability.
