Serien Nr.
WNCS0503EPUM00731
Karosserietyp
Fester Rahmen
Kabinentyp
Geschlossene Kabine
Emissionsklasse
Emissionsklasse 4 / Tier IV final
Motorleistung
54,4 kW (74 PS)
Höchstgeschwindigkeit
19,3 km/h
Zustand der Bereifung vorne
100
Zustand der Bereifung hinten
100
Zusätzliche Informationen
BASE MODEL W/ ADDED FACTORY INSTALLED OPTIONS:
• AC04 - HYDRAULIC COUPLER
• CB05 - CAB TYPE ENCLOSED - HEAT & AC
• CP04 - SELECTABLE EH JOYSTICK CONTROLS
• DS02 - 2-SPEED DRIVE 8-12MPH
• FS01 - FAN VARIABLE SPEED COOLING
• FT14 - ONE-WAY HYDRAULIC BUCKET LEVELING
• FT17 - RIDE CONTROL
• ST01 - SEAT MECHANICAL SUSPENSION
• 1000365245 - DELUXE TELEMATICS

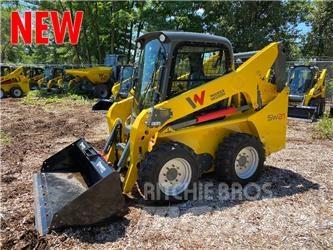

SW21 Base Skid Steer Information:
Operating Data:
• Height Top Of ROPS: 81.5"
• Overall length w/ bucket: 134.9"
• Overall length w/o bucket: 106.6"
• Operating weight: 6,512 lb.
• Height Hinge Pin Max: 124"
• Rated Operating Capacity 50%: 2,100 lb.
• Dump reach: 34.1"
• Dump height max. at max height: 96.5"
• Angle of departure: 24°
• Tipping angle (Bucket dump) w/bucket at max height: 42°
• Ground clearance: 7.6"
• Breakout force max. - Bucket: 5,300 lbf
• Breakout force max. - Boom: 5,000 lbf
• Width: 65.9"
Engine / Motor:
• Engine / Motor manufacturer: Kohler
• Engine / Motor: KDI 2504 TCR
• Engine performance: 74 hp
• Fuel tank capacity: 32.8 gal.
• Hydraulic System:
• Auxiliary Hydraulics - Standard Flow: 20 gpm
• Auxiliary Hydraulics - High Flow: 30 gpm
• Hydraulic oil tank: 2.9 gal.
Power Transmission:
• Travel speed: 8 mph (low), 12 mph (high)
• Standard tires: 10" x 16.5"
Standard Components:
• Vertical Lift Arm
• 74.3 HP Kohler Tier IV Final diesel engine
with maintenance-free after treatment
• ROP’s / FOP’s Level 1 Canopy with Side Screens
• Mechanical Hand-Foot Controls
• 10" x 16.5" All-Terrain Tires
• 20.1 gal./min. Auxiliary flow
• 2" Seat Belt

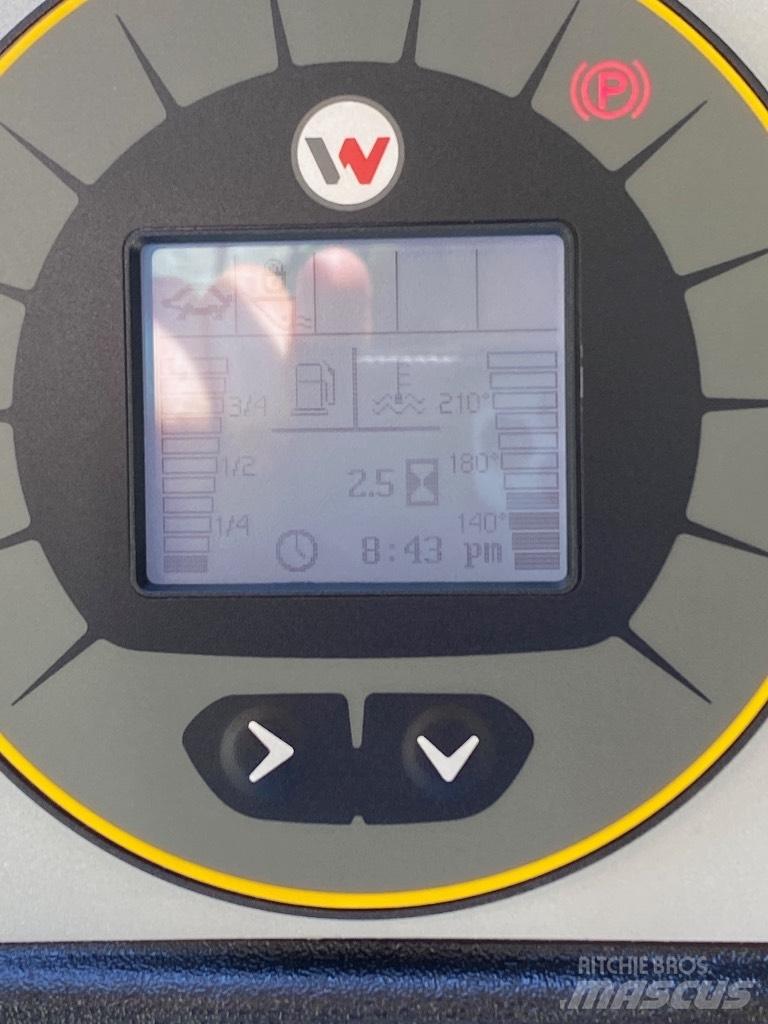

• 3" Single Color Display
• 2 Front single beam working lights
• 2 Rear working lightsMehr anzeigen
